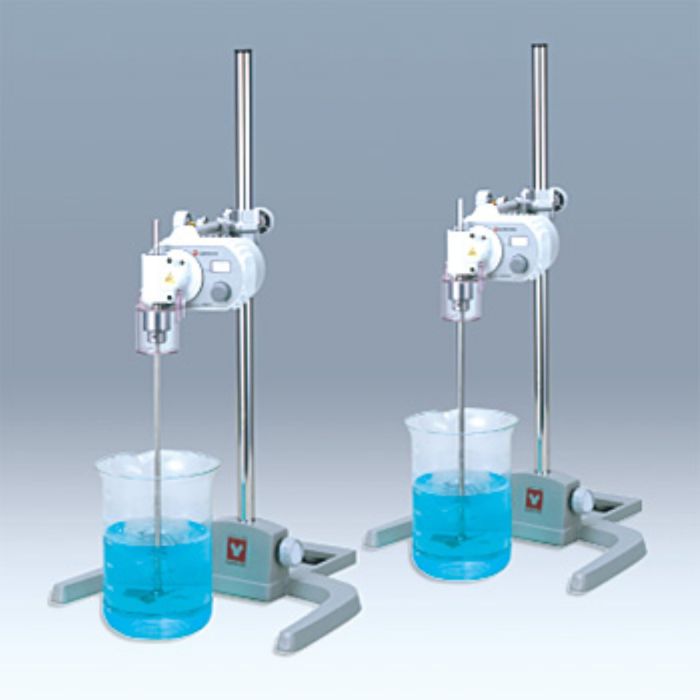

LT-400A SET MAIN BODY, STAND, ROD, STAINLESS STEEL SHAFT AND 60 MM 4-BLADE PROPELLER
was $1,620.00 Special Price $1,456.86
With Yamato stirrers, there is no loss of rotation speed as viscosity builds. Unlike conventional stirrers, the powerful DC brushless motor and feedback control circuit of the laboratory stirrers maintain constant speed from no load up to a maximum torque (1 per EA )
Manufacturer: Yamato Scientific America
SKU
LT-400AA-EA
LT-400A SET MAIN BODY, STAND, ROD, STAINLESS STEEL SHAFT AND 60 MM 4-BLADE PROPELLER is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- Highly sensitive feedback system keeps the set speed, even with changing viscosity during stir
- Maintenance free DC brushless motor
- Digital speed indicator for accurate speed setting and confirmation
- Noise prevention measures for optimal work environment
- More safety-oriented design
| Model | LT400A | LT400B | LT400C | LT500A | LT500B |
|---|---|---|---|---|---|
| Viscosity of sample | High | Medium | Medium-Low | High | Medium |
| Speed range | 10~300rpm | 15~600rpm | 25~1200rpm | 15~600rpm | 25~1200rpm |
| Torque | 0.9N•m (9.0kgf•cm) | 0.5N•m (5.0kgf•cm) | 0.3N•m (3.0kgf•cm) | 1.0N•m (10.0kgf•cm) | 0.6N•m (6.0kgf•cm) |
| Motor | DC brushless motor 30W | ||||
| Speed control | Feedback control | ||||
| Panel display | Digital speed display, Overload display*¹ , Torque indicator (20% gradation)*² | ||||
| Chuck | ø8mm drill chuck | ||||
| Safety device | Current limit circuit *³ , Thermal protector*4 , Drill chuck cover | ||||
| External dimensions WxDxH | 146 x 154 x 165 mm | ||||
| Power source | AC100V~AC125V 50/60Hz | ||||
| Power cord | Power supply cord with bipolar grounding type plug 2m | ||||
| Weight | 2.4 kg | ||||
| Included accessories | Clamp, safety cover, chuck handle | ||||
| Operational accessories* | Stirring shaft (stainless steel or glass), propellers (different types and sizes), stand and rod | ||||
| Recommended set composition | |||||
Manufacturer Part Number/SKU: LT-400AA-EA
Tags: Stirrer, overhead stirrer, mixer
