LM-100 SET MAIN BODY, STAND, PTFE STIRRING BAR W/ PROPELLER L450mm×50mm, BURETTE CLAMP 9.5 29mm and Double Opening Clamp 3 55mm
was $1,160.00 Special Price $1,043.18

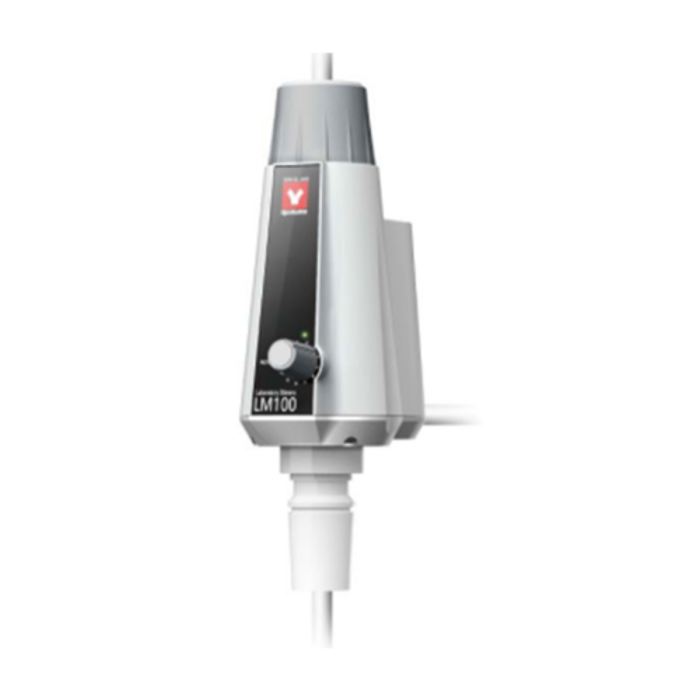

LM Series compact design laboratory flask mixer features integrated drive and stirring seal allowing direct installation of flask and stirring in a vacuum and sealed state. No time-consuming shaft alignment required. Its strong stirring power is perfect (1 per EA )
Manufacturer: Yamato Scientific America
SKU
LM-100A-EA
LM-100 SET MAIN BODY, STAND, PTFE STIRRING BAR W/ PROPELLER L450mm×50mm, BURETTE CLAMP 9.5 29mm and Double Opening Clamp 3 55mm is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- Wide range rotation speed of 50-1000 rpm
- Maintenance free and superior DC brushless motor
- Belt drive transmission minimizes noise and vibration
- Capable of vacuuming up to 399.9Pa without impairing rotation efficiency
- Directly attachable to a three-neck flask 24/40, 29/42 optional
- Variety of stirring shafts and blades available to handle small to large volume samples
- Fluorine rubber seal as standard for shaft seal, superior chemical resistant Teflon®rubber seal available as option
- At the flask joint, FKM o-ring is used as standard, superior chemical resistant Kalrez® o-ring available as option
- Equipped with 24/40 rotary joint, 29/42 optional
- Capable of AC100-240V by changing power cord
| Model | LM100 | LM110 | LM200 | LM210 |
|---|---|---|---|---|
| Operating temp. range | 5°C~35°C | |||
| Speed range *¹ | 50~1000 rpm | |||
| Max. torque | 0.1N•m | |||
| Max. ultimate vacuum | < 399.9Pa | |||
| Exterior | PBT /ADC12 (Surface: branded / painted) | |||
| Motor | DC brushless motor 30W | |||
| Speed control | Feedback control | |||
| Display | --- | 3 digit×10 rpm Digital | ||
| Operation lamp | Green LED | Rotation speed display | ||
| Adaptable flask size | 50~5000 ml | |||
| Joint size | TS 24/40 | |||
| Chuck | ø8mm (φ7.9~7.95) | |||
| Sealing material | PTFE (rotary joint) / FKM (oil seal, o-ring) | |||
| Safety device | Overload protection function*², coupling cover (hair entanglement prevention structure), slow start function | |||
| External dimension | W69 × D108 × H222 mm | |||
| Power source 50/60Hz | Single phase AC100V~AC120V 50/60Hz 1A | Single phase AC200V~AC220V 50/60Hz 1A | Single phase AC100V~AC120V 50/60Hz 1A | Single phase AC200V~AC220V 50/60Hz 1A |
| Power cord | A type 3P (AC115V 50/60Hz) | O type 3P (AC220V 50/60Hz) | A type 3P (AC115V 50/60Hz) | O type 3P (AC220V 50/60Hz) |
| Weight | 700g (main body only) | |||
| Included accessories | Hexagon socket head cap screw & wrench, AC adapter, 3m power cord, coupling cover, handle (arbor), flask clip | |||
| Operational accessories*³ | Stirring shaft (stainless steel or glass), propellers (different types and sizes), stand and rod | |||
| Recommended set composition | Main body, stand, PTFE stirring bar with propeller L450mm x φ50mm, burette clamp φ9.5~φ29mm, double opening clamp 3~55mm | |||
