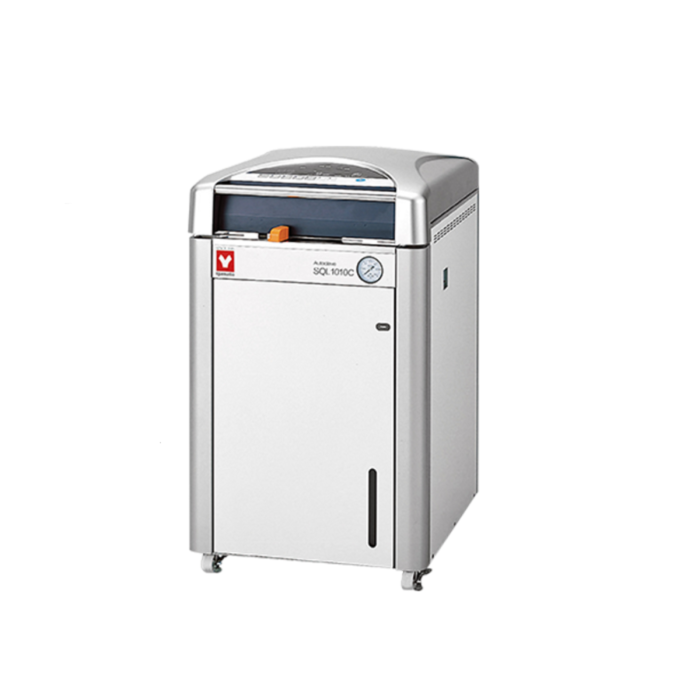

LARGE CAPACITY STERILIZER WITHOUT DRYER 110L 220V
Manufacturer: Yamato Scientific America
Product Details
Download Details and SpecificationsThe top-loading high capacity SQL1010C autoclave features an advance cooling fan system which allows you to handle more load in less time. Built with high-performance & easy operation in mind, the Yamato SQL1010C is equipped with an automated high-pressure sterilization system and an operating temperature range that goes up to 135°C. This large capacity SQL steam sterilizer takes your sterilization to the next level, whether it involves simple sterilization processes to complex sterilization of culture media, and melting of culture media.
SQL1010C
SQL1010C boasts of user-comfort thanks to its ergonomic, low height, top-loading design so you can load containers without the added strain. Operating steam sterilizers has never been easier & more comfortable. Custom programs can also be saved for repeated use with just a push of a button. Find top-quality in our SQL1010C steam sterilizer model.
Operation and functions
- Maximum sterilizing temperature goes up to 135°C suitable for protein modification
- By simple setting and operation, these sterilizers manage ordinary sterilization, sterilization of culture media and liquids, and melting of culture media
- Custom programs can be saved for repeated use
- Standard equipped with timer start and pre-heating features for efficient use of time and cooling fan to shorten cool down time
- Mobile on wheels
Increased Safety Features
- Lid interlock mechanism
- Drain bottle unset alarm
- Memory malfunction
- Automatic shutdown when malfunction
- Self-diagnostic functions
| Model | SQL1010C |
|---|---|
| System | Automatic high-pressure steam sterilization |
| Operating temp. range | 45~135°C 45 ~80°C (pre-heating) / 45 ~ 60°C (heat retention) / 65 ~100°C(melting) / 105~135°C (sterilization |
| Max. working pressure | 0.255MPa |
| Lid (cover mechanism) | Manual upward opening with an interlock for safety |
| Heater | 2000W x 2 units |
| Exhaust valve | One exhaust valve and one slow release valve |
| Option port | For sample sensor (1/4), recorder (1/4) and connection to pressure gauge (branched from the electromagnetic exhaust duct) |
| Cooling fan | Axial fan motor |
| Temp. controller | PID control by microprocessor |
| Temp. display / setting | Digital display / digital setting by ?? keys |
| Timer / Timer resolution | 0 or 1 min. to 99 hrs 59 min. / 1 minute |
| Operation mode | Instrument sterilization course, liquid sterilization course, sterilization and keep warm course, melting and keep warm course, customer-programmed course |
| Other functions | Key locking, presetting, saving, preheating, forced cooling, sample temperature sensor (option), pattern locking, up to 20 error log saving, display of accumulated working time / present time, ON-OFF beeping setting |
| Safety device | Sensor failure detection, SSR short-circuit, broken heater wire, prevention of idle heating (liquid expansion type), alarm against the absence of a drain bottle, failure in locking the lid, memory error detection, pressure relief valve (0.255 MPa) |
| External dimensions(WxDxH)* | 680 x 760 x 1154 mm |
| Internal dimensions of chamber | I.D.450 x 692 mm |
| Internal capacity | 110L |
| Weight | ~170kg |
| Power source | AC220V 19A (no plug, round terminal) |
| Included accessories | 2 pcs. stainless steel mesh basket (ø424xH300 mm) |
| Vapor cup x 1, Drain bottle x 1, Drain board x 1, Filter x 1 |
* External dimensions exclude protrusions
Manufacturer Part Number/SKU: SQL-1010C-EA
Tags: Top loading large capacity steam sterilizer
