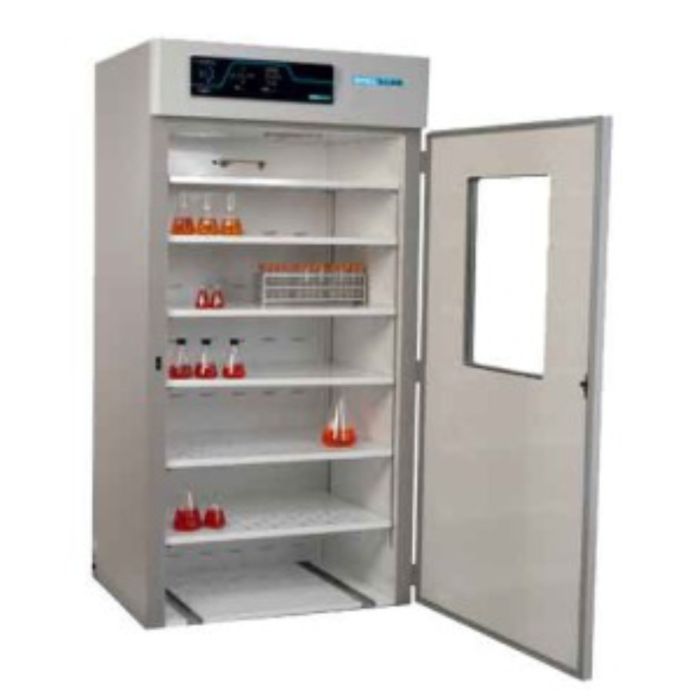

LABORATORY INCUBATOR, LARGE CAPACITY, 30.8 CU FT, SOLID DOOR w/ VIEW, ROLL-IN FLOOR, OUTLET, ACCESS PORT, 115V
$11,028.00
Interior Outlet:Four Access Port:One Shelving:6 Supplied (16 Maximum) Temperature Uniformity:+/-0.8°C at 37°C Temperature Range:Ambient +8 to 70°C Exterior Dimensions WxDxH in. (cm):38.5 x 34 x 75.3 (97.8 x 86.4 x 191.2) Interior Dimensions WxDxH in. (cm):32.6 x 26.0 x 64.1 (82.8 x 66 x 162.8) Capacity:30.8 Cu.Ft. (872 L) Maximum Energy Consumption (W):1440/1920 All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ± 3)°C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time. Related products (1 per EA)
Manufacturer: Sheldon Manufacturing
SKU
SMI31-EA
LABORATORY INCUBATOR, LARGE CAPACITY, 30.8 CU FT, SOLID DOOR w/ VIEW, ROLL-IN FLOOR, OUTLET, ACCESS PORT, 115V is available to buy in increments of 1
Product Details
Download Details and SpecificationsShel Lab’s Large Capacity Incubators provide extra-large capacities while minimizing the amount of floor space needed. The temperature in this large space is kept uniform by integrating a highly responsive microprocessor with an appropriately sized heating element. An independent secondary temperature controller offers the added security of over temperature protection.
Our unique forced air circulation system creates a one-pass circulation pattern that provides both exceptional temperature uniformity and rapid heat recovery. The chamber floors are ruggedly reinforced to support roller apparatus or shakers. The SMI31 is supplied with six sturdy shelves that will not sag or bend under heavy loads.
Features include:
- Roller Bottle Apparatus Accommodation
- Tempered Glass Viewing Window
- Prewired Panel for Chart Recorder
- Four Interior Electrical Outlets
- 24 Month Limited Warranty
- Glass Window Blocks up to 56% of UV Light
- NEW – the SMI39 is now supplied with a standard stainless-steel interior!
MODEL
SMI31
PART ID
SMI31
EXTERIOR DIMENSIONS (W × D × H)
38.8 × 34.3 × 76.9
(985 mm × 871 mm × 1953 mm)
INTERIOR DIMENSIONS (W × D × H)
32.5 × 26 × 63.3
(825 mm × 660 mm × 1607 mm)
VOLUME
30.9 cu.ft. (874 L)
SHELF DIMENSIONS (W × D)
25 × 32.4 (635 mm × 823 mm)
UNIT WEIGHT
406 lbs (184 kg)
INTERIOR METAL
430 Stainless Steel
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +8C - 70C
TEMPERATURE UNIFORMITY - MIDRANGE
0.8 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 12.0 Amps
MAX HVAC LOAD
3084 BTUs/hr
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
Manufacturer Part Number/SKU: SMI31-EA
