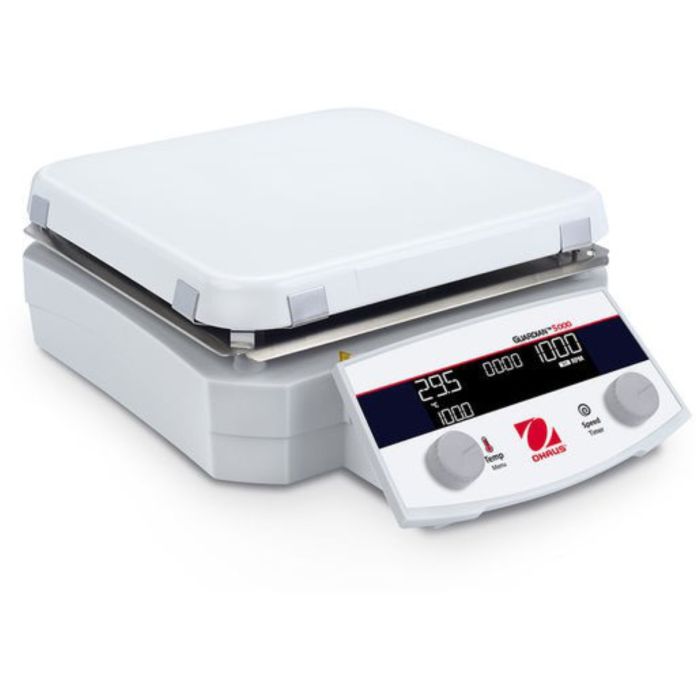

Hotplate-Stirrer e-G52HS10C 120V AM
was $1,086.95 Special Price $951.12
Expertly Engineered Hotplate Stirrers with Premium Safety and Versatility Features for Everyday Use (1 per EA)
Manufacturer: Ohaus Corporation
SKU
30541637-EA
Hotplate-Stirrer e-G52HS10C 120V AM is available to buy in increments of 1
Product Details
- Our signature SafetyHeat™ and SmartHeat™ features combined with the new Run Dry Protection system* plus the Time Run mode and the optional Splash Shield provide complete safety.
- The evolved SmartRate™ system supports heating & stirring from fast and intensive to soft and precise, with a range of accessories to empower a variety of applications.
- An intuitive user interface featuring a large, bright LCD screen with white characters & knob button(s), allows for user friendly operation. RS232 port included for remote control or data logging.
Product Specifications
| Function | Heating and Stirring |
| Capacity | 22 L |
| Plate Construction | Ceramic |
| Plate Size (Width) | 26 cm (10 in) |
| Plate Size (Length) | 26 cm (10 in) |
| Temp. Range | Ambient +5°C – 500°C |
| Speed Range | 50 rpm – 1,800 rpm |
| Timer | 1 minute – 99 hours, 59 minutes |
| Control | Digital |
| Dimensions (Length) | 402 mm (15.84 in) |
| Dimensions (Width) | 287 mm (11.28 in) |
| Dimensions (Height) | 118 mm (4.65 in) |
| Calibration | Temperature Calibration 3 Plate/3 Probe |
| Communication | Ethernet (Available as an Accessory); USB (Available as an Accessory); RS232 |
| Display | High contrast brilliant LCD display |
| Heating Power | 1,650 W |
| Net Weight | 6.7 kg (14.8 lb) |
| Power | 100V-120V~ 15A 50/60Hz |
| Probe Temperature Measurement Accuracy | ±0.2°C + PT1000 (Class A) Tol. |
| Safety Certification | CE; TUV |
| Speed Stability | +/-2% |
| Temp. Stability | +/-1% Plate, below 100°C +/-1°C and +/-0.5% Probe, below 100°C +/-0.5°C |
| Temperature Increments | 0.5 °C |
| Temperature Probe | Pt100; Pt1000; Available as an Accessory |
| Temperature Readability | 0.5 °C |
| Working Environment | 41°F – 104°F, 80% RH, Non-condensing |
| Working Environment | 5°C – 40°C, 80% RH, Non-condensing |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8419899585 |
Manufacturer Part Number/SKU: 30541637-EA
