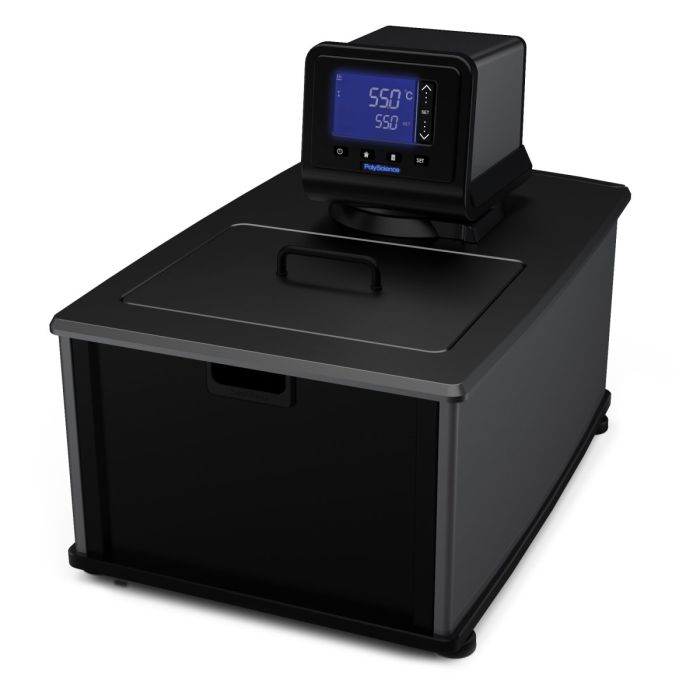

Heated Circulator, 15L, Standard Digital (Ambient +10° to 170°C), 120V, 60Hz
was $3,198.00 Special Price $2,999.72
Key Features: Large, universal icon and English display Swivel 180™ Rotating Controller On-board connectivity: RS-232 serial output On-screen prompts Automatic performance optimization Single-point calibration capabilit (1 per EA)
Manufacturer: Polyscience Corp
SKU
SD15H170-A11B-EA
Heated Circulator, 15L, Standard Digital (Ambient +10° to 170°C), 120V, 60Hz is available to buy in increments of 1
Product Details
Download Details and Specifications| Working Temperature Range °F | Ambient + 20° to 338° |
| Working Temperature Range °C | Ambient +10° to 170° |
| Reservoir Capacity (gallons) | 3.96 |
| Reservoir Capacity (liters) | 15 |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop | Yes |
| Working Access (L x W x D) (inches) | 8.35 x 10.88 x 5.5 in |
| Working Access (L x W x D) (cm) | 21.2 x 27.6 x 14 cm |
| Temperature Stability °C | ±0.04° |
| Display | 3.75" Touch-Pad LCD |
| Display Resolution (Set) | 0.1 |
| Display Resolution (Read) | 0.1 |
| Pump Type | Pressure |
| Pump Speed | Two |
| Body | -20, 7 L Ref. Circulator |
| Controller Type | Standard Digital |
| Display | 3.75" Touch-Pad LCD |
| Working Temperature Range °C | -20° to 170° |
| Working Temperature Range °F | -4° to 338° |
| Flammability Class (DIN 12876-1) | I (NFL) |
| Nominal Cooling Capacity @ +20C (W) | 200 |
| Reservoir Capacity (gallons) | 1.85 |
| Reservoir Capacity (liters) | 7 |
| Reservoir/Tank Material | Stainless Steel |
| Working Temperature Range °F | -4° to 338° |
| Working Temperature Range °C | -20° to 170° |
| Nominal Cooling Capacity @ +20C (W) | 200 |
| Reservoir Capacity (gallons) | 1.85 |
| Reservoir Capacity (liters) | 7 |
| Reservoir/Tank Material | Stainless Steel |
| Reservoir Cover | Included |
| DuraTop | Yes |
| Working Access (L x W x D) (inches) | 6.18 x 5.59 x 5 in |
| Working Access (L x W x D) (cm) | 15.7 x 14.2 x 12.7 cm |
| Temperature Stability °C | ±0.04° |
| Display | 3.75" Touch-Pad LCD |
| Display Resolution (Set) | 0.1 |
| Display Resolution (Read) | 0.1 |
| Pump Type | Pressure |
| Pump Speed | Two |
| Over-Temperature Protection / Failsafe Heater Control | Yes |
| Low Liquid Level Protection | Yes |
| Reservoir Drain | Yes |
| Maximum Ambient Temperature °F | 95° |
| Maximum Ambient Temperature °C | 35° |
| Overall Dimensions (L x W x D) (inches) | 21.3 x 8.7 x 24.3 in |
| Overall Dimensions (L x W x D) (cm) | 54.1 x 22.1 x 61.7 cm |
| Refrigerant | R134a |
| Environmental Compliance | ROHS, WEEE |
| Shipping Weight (pounds) | 90.00 |
| Shipping Weight (kilograms) | 40.80 |
Manufacturer Part Number/SKU: SD15H170-A11B-EA
