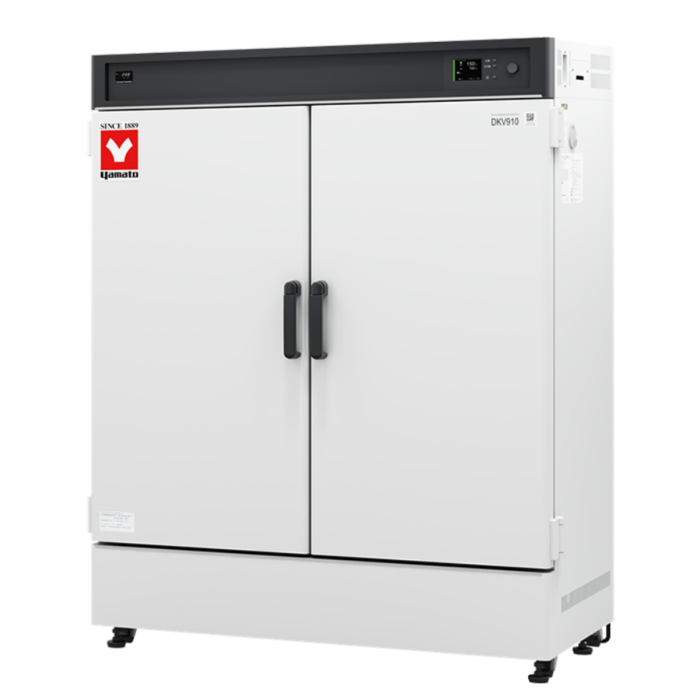

FORCED CONVECTION OVEN PROGRAMMABLE 535L 220V
Manufacturer: Yamato Scientific America
Product Details
Download Details and SpecificationsFeatures
- Superior temperature accuracy
- Easy to use, highly visible 3.5 in. color LCD controller
- Door hinges with click function
- Fixed temperature, Quick Auto-Stop / Auto-Stop / Auto-Start / Programmed Auto-Start
(Time and Clock Settings), Programmed (Time Settings) operations - Increased safety and self-diagnostic functions
- User-friendly and easy to maintain
- Built in cable and exhaust ports
Safety features
- Self-diagnostic functions (temperature. sensor abnormal, heater disconnection, SSR-short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection
| Model | DKV400 | DKV410 | DKV600 | DKV610 | DKV810 | DKV910 |
|---|---|---|---|---|---|---|
| Circulation method | Forced convection | |||||
| Operating temp. range1 | Room temp. +10°C to 270°C | RT +10°C to 220°C | ||||
| Temp. fluctuation2 | ±.6°C (at 270°C) | ±.5°C (at 270°C) | ±.6°C (at 270°C) | ±.6°C (at 220°C) | ||
| Temp. gradient2 | 9°C (at 270°C) | 11°C (at 270°C) | 11°C (at 220°C) | |||
| Temperature rise rate2 | 3.3°C / min | 2.1°C / min | 3.4°C / min | 2.5°C / min | ||
| Temp. rise time2 | ~75 min. | ~115 min. | ~75 min. | ~80 min. | ||
| Exterior material | Chromium-free electrogalvanized steel sheet, baked coating | |||||
| Chamber | Stainless steel | |||||
| SUS tube heater | 1.5kW | 2.5kW | 3.0kW | |||
| Cable port | Stainless steel tube heater | |||||
| Exhaust port | 33mm I.D. x 2 (top) | 33mm I.D. x 2 (back) | ||||
| Safety devices | Self-diagnostic functions (automatic overtemperature protection, temperature sensor error, SSR short circuit, heater disconnection, fan error, clock element error, main relay error, memory error, internal communication error) / independent overheat prevention device / door switch (door alarm) / overcurrent leakage breaker / fall prevention fitting (Model 810/910) | |||||
| Controller type | VSD-1 Controller | |||||
| Temp. control system | PID control by microcomputer | |||||
| Temp. display | 3.5-inch color LCD panel digital display | |||||
| Timer / clock timer | 1 minute to 99 hours 59 minutes / Date: hour: minute (up to 31 days later) | |||||
| Operation modes | Fixed temperature / Timer: Hourly quick auto stop operation / Timer: Hourly auto stop operation / Timer: Hourly auto start operation / Program operation / Timer: Hourly program auto start operation | |||||
| Additional functions | Calibration offset / Power failure return mode selection function / Timer Wait function / Security management function / Temperature upper/lower limit alarm function / Fan OFF delay function / Power failure alarm / External communication terminal (RS-485) / Temperature output terminal (4-20mA) / Time-up output terminal / Error output terminal / Recorder terminal / Program preview function / Operation trend function | |||||
| Sensor | Temperature controller / independent overheat prevention device: K thermocouple | |||||
| Safety devices3 | Self diagnosis functions (temp. sensor abnormal, Heater disconnection, SSR- short, Automatic overheating prevention), Key lock function, Overheat prevention, Electric leakage breaker with over current protection | |||||
| Internal dimensions (W×D×H) | 450×450×450 mm | 600×500×500 mm | 600×500×1000 mm | 1090×500×1000 mm | ||
| External dimensions (W×D×H)4 | 580×635×830 mm | 730×685×880 mm | 730×685×1610 mm | 1220×685×1610 mm | ||
| Internal capacity | 90L | 150L | 300L | 545L | ||
| Chamber shelf load | ~15kg/shelf | |||||
| Chamber load capacity | ~30kg | ~60kg | ~120kg | |||
| Number of shelves / pitch | 11 steps / 30mm | 13 steps / 30mm | 29 steps / 30mm | 29 / 30mm×2 columns | ||
| Power supply 50/60Hz Rated current | 115V, 13.5A with plug | 220V, 7.5A no plug, round terminal | 115V, 13.5A with plug | 220V, 7.5A no plug, round terminal | Single phase 220V, 12A no plug, round terminal | Single phase 220V, 14.5A no plug, round terminal |
| Weight | ~60kg | ~75kg | ~120kg | ~195kg | ||
| Included shelf plate / brackets | 1 pc. / 2 pcs. | 3 pc. / 6 pcs. | 6 pc. / 12 pcs. | |||
| Fall prevention fittings | - | - | 4 pcs (fixing hole diameter Φ14 M12 recommended) | |||
*1. Performance (excluding temperature rise time) is measured at rated voltage, 50Hz or 60Hz frequency, room temperature 23° C ±5° C, humidity 65%RH ±20%, and no load. Note that the maximum temperature in the temperature control range may not be reached if the power supply voltage is below the rating or if the outside temperature is low.
*2. Temperature rise time is reference data for rated voltage, 50Hz or 60Hz, room temperature 23°C, humidity 65%, and no load. Note that the temperature rise time may be longer when the power supply voltage is below the rating or when the outside temperature is low.
*3. If the product is used beyond the operating voltage range ( ±10% of rating), there is a possibility that the safety function will malfunction. Pay attention to the power supply voltage when using the product.
*4. Protrusions are not included.
Manufacturer Part Number/SKU: DKV-910-EA
