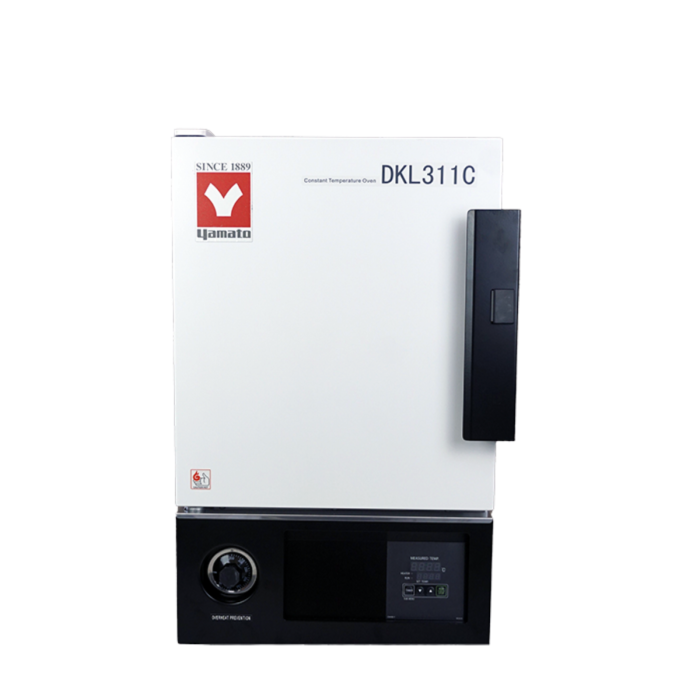

FORCED CONVECTION OVEN 27L 220V
was $2,245.00 Special Price $2,003.66
FORCED CONVECTION OVEN 27L 220V (1 per EA )
Manufacturer: Yamato Scientific America
SKU
DKL-311C-EA
FORCED CONVECTION OVEN 27L 220V is available to buy in increments of 1
Product Details
Download Details and SpecificationsPerformance and functions
- Fixed temperature, Quick auto stop, Auto stop, and Auto start operating modes with easy control capabilities
- Settings can be made digitally with the dedicated operation menu keys or the ?/? keys
- Calibration off-set as auxiliary function
Safety features?
- Self-diagnostic functions, MCB with over current protector, hydraulic standalone overheat prevention device
| MODEL | DKL301C DKL311C | DKL401C DKL411C | DKL601C DKL611C |
|---|---|---|---|
| Circulation Method | Forced air circulation | ||
| Operating Temperature Range | Room temp. +10~260°C | ||
| Temp. Control Accuracy | ±1°C (at 260°C) | ||
| Temp. Distribution Accuracy | ±2.5°C (at 260°C) | ||
| Temperature rise time | ~90min (at room temp. ~260°C) | ||
| Interior Material | Stainless Steel (SUS430) | ||
| Exterior Material | Steel plate SPCC (powder coating) | ||
| Heat Insulating Material | Glass wool | ||
| Heater | SUS pipe heater | ||
| 0.8kW | 1.2kW | 1.5kW | |
| Fan motor | Sirocco fan 10W | ||
| Cable Port | 30 mm l.D.×1 pc. (right side) | ||
| Exhaust Port | 30 mm l.D.×2 pcs. (top) | ||
| Temp. Controller | PlD control by microprocessor | ||
| Temp. Setting Method | Digital setting by ?/? key | ||
| Operation functions | Fixed temperature, Quick auto-stop, Auto stop, Auto start | ||
| Additional functions | Calibration off-set function | ||
| Heater Circuit Control | SSR control | ||
| Sensor | K-thermocouple | ||
| Safety Device | Self diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an over current protector, hydraulic standalone overheat prevention device | ||
| Internal Dimensions W×D×H | 310×310×310mm | 450×450×450mm | 610×500×500mm |
| External Dimensions W×D×H | 410×450×680mm | 560×600×820mm | 710×650×880mm |
| Internal Capacity | 27L | 90L | 150L |
| Shelf Plate With Standard Load | 15kg/piece | ||
| Shelf Rest Step Number | 6 steps | 9 steps | 12 steps |
| Shelf Rest Pitch | 35mm | ||
| Power Source 50/60Hz | AC115V 7.5A with plug / AC220V 4A no plug, round terminal | AC115V 11A with plug / AC220V 6A no plug, round terminal | AC115V 13.5A with plug / AC220V 7.5A no plug, round terminal |
| Weight | ~35kg | ~50kg | ~65kg |
| Shelf Plate | Stainless steel | ||
| 2 pcs. | |||
| Shelf bracket | 4 pcs. | ||
Performance under the power supply condition of AC 115V and 220V are shown here.
Operating environmental temperature range for this device is 5~35°C
Manufacturer Part Number/SKU: DKL-311C-EA
