FORCED CONVECTION LAB DRY STERILIZER 300L 115V 21.5A 50/60Hz
Manufacturer: Yamato Scientific America
Product Details
Download Details and SpecificationsYamato’s SK series dry sterilizers feature a collection of highly functional natural convection & forced convection dry-heat sterilizer models. All units are constructed to enhance sterilization, drying, and heating, effectively and efficiently transforming how you get the work done at lower cost. Featuring the latest technology & a highly precise controller, the SK dry heat series is the most functional programmable dry sterilizer line that showcases improved display visibility and operability.

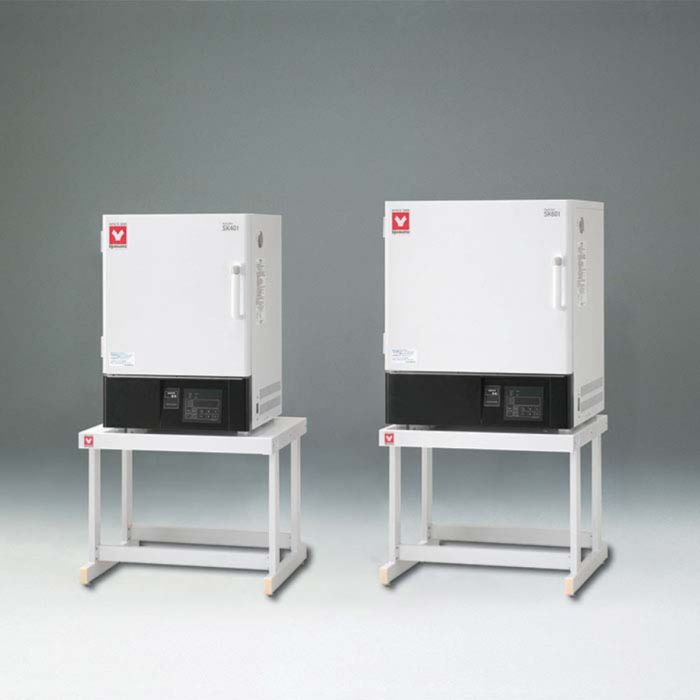

The Yamato SK401 & SK601 natural convection sterilizers bring economical savings with their lower maintenance & operational costs. While the SK801 & SK811 dry sterilizers are equipped with advanced forced convection technology. Their powerful motor-driven blower ensures heated air is evenly distributed within the chamber at higher velocity. So it sterilizes your samples more thoroughly and quickly.
Find reliable dry sterilization performance in our natural and forced convection SK dry sterilizers. Each with advanced operational functions including commonly used commands and over 99 steps, patterns, and repeat operation functions. Plus easily collect sample data with cable port. All included in the 99L, 162L, and 300L size options.
Operation and functions
- Programmable
- High precision controller with improved display visibility and operability
- Standard equipped with calibration off-set, lock function, power recovery mode, power on and operation time accumulation, calendar time, accumulation power consumption monitoring, total CO2 emission, and heat output, save and access operator setting information
- Maximum 99 steps, 99 patterns, repeat operation
- Easy sample data collection with cable port
Safety Features
- Standard equipped with self diagnostic functions, independent overheat prevention device and earth leakage breaker
| Model | SK401-115V SK401-220V | SK601-115V SK601-220V | SK801 SK811 |
|---|---|---|---|
| Circulation method | Natural convection | Forced convection | |
| Temp. setting range | Room temp. +5~260°C | Room temp. +10~210°C | |
| Temp. control accuracy | ±1°C (at 260°C) | ±1°C (at 210°C) | |
| Temp. fluctuation | ±1.5°C (at 260°C) | ±1°C (at 210°C) | |
| Temp. distribution accuracy | ±5°C (at 260°C) | ±3.5°C (at 210°C) | |
| Temp. rising time | ~60min. | ||
| Interior / Exterior material | Stainless Steel / Chrome free electrogalvanized carbon steel sheet coated with chemical-proof baked-on finish | ||
| Insulation Material | Glass wool | ||
| Heater | SUS 1.2kW | SUS 1.36kW | SUS 2.4kW |
| Sensor | K type Thermocouple | ||
| Fan type / Fan motor | − | − | Sirocco Fan / Condenser type motor 30W |
| Cable port | I.D. 33mm (right side) | ||
| Exhaust port | I.D. 33mm x 2 (on top) | I.D. 33mm x 2 (back) | |
| Temperature control | PID control by microprocessor | ||
| Temperature display | Temp. display: Green 4-digit LED Digital Display (increment: 1°C) Setting temp. display: Orange 5-digit LED Digital Display (increment: 1°C) | ||
| Timer | 0 min~99 hrs 59 min (increment: 1 min. or 1 hr.) | ||
| Heater control | Triac with Zero-cross control | ||
| Operation function | Fixed temperature, Auto start, Auto stop, Quick auto stop, Program (99 steps, 99 patterns, repeat operation function) | ||
| Additional function | Power on and operation time accumulation function (up to 65535 hours), Calendar time (24 hours), Calibration offset, Accumulated power consumption monitoring, Total CO2 emission and heater output, Power recovery mode, Save and access operator setting information, key lock | ||
| Safety device | Self-diagnostic functions (Sensor failure, SSR short circuit, Heater failure, Main relay contact failure, Automatic overheat prevention), earth leakage breaker, Independent overheat prevention device | ||
| Internal dimensions WxDxH | 450 x 490 x 450 mm | 600 x 540 x 500 mm | 600 x 500 x 1000 mm |
| External dimensions WxDxH | 560 x 600 x 820 mm | 710 x 650 x 870 mm | 710 x 650 x 1640 mm |
| Internal capacity | 99L | 162L | 300L |
| Shelf plate with standard load | ~15kg/pc | ||
| Shelf rest step number / pitch | 11 steps / 30mm | 13 steps / 30mm | 29 steps / 30mm |
| Power source | 115V 11A (with plug) 220V 6A (no plug, round terminal) | 115V 12.5A (with plug) 220V 6.5A (no plug, round terminal) | 115V 21.5A (no plug, round terminal) 220V 11.5A (no plug, round terminal) |
| Weight | ~50kg | ~62kg | ~108kg |
| Included accessories | Shelf and brackets (stainless steel punched metal) | ||
| 2 pcs. / 4 pcs. | 2 pcs. / 4 pcs. | 4 pcs. / 8 pcs. | |
Manufacturer Part Number/SKU: SK-801-EA
Tags: Dry sterilizer, dry sterilization, glassware sterilization
