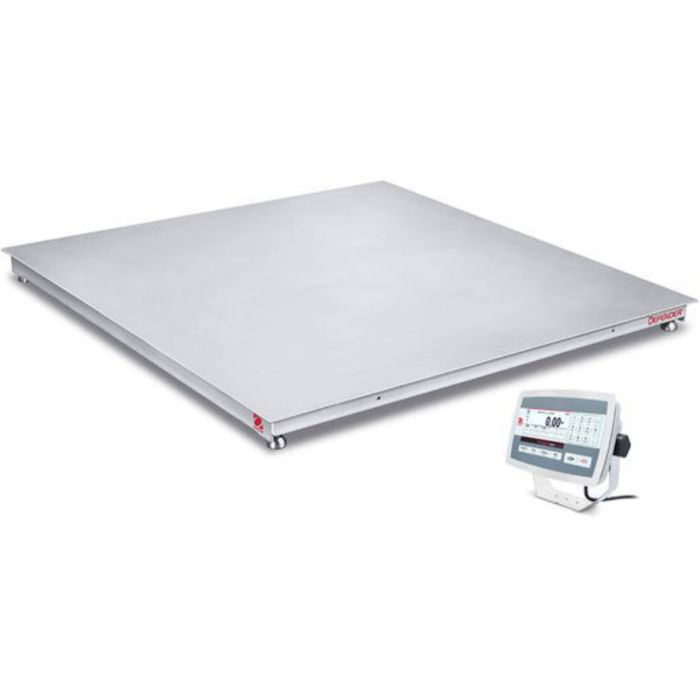

Floor Scale i-DF52XW2500C1R
was $5,961.95 Special Price $4,414.17
Floor Scales for Basic Industrial Applications (1 per EA)
Manufacturer: Ohaus Corporation
SKU
30837697-EA
Floor Scale i-DF52XW2500C1R is available to buy in increments of 1
Product Details
- 304 stainless steel, flat surface decks with 4 IP68 load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
- Platforms available in sizes of 3x3 ft and 4x4 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
- Equipped with a new TD52 series indicator featuring an easy-to-use keypad, large backlit display, and plain text on-screen prompts to guide you through operation.
Product Specifications
| Maximum Capacity | 1,250 kg (2,500 lb) |
| Readability | 0.2 kg (0.5 lb) |
| Readability (Certified) | 0.5 kg (0.5 lb) |
| Platform Size (Length) | 914 mm (3 ft) |
| Platform Size (Width) | 914 mm (3 ft) |
| Dimensions (Length) | 914 mm (3 ft) |
| Dimensions (Width) | 914 mm (3 ft) |
| Dimensions (Height) | 90 mm (3.5 in) |
| Battery Life | 10 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); 2nd RS232/RS485/USB (available as an accessory); RS232 (Included); USB Host (Available as an Accessory); WiFi/Bluetooth (available as an accessory) |
| Display | Dot matrix LCD with white LED backlight |
| Legal for Trade | NTEP Certified |
| Net Weight | 98 kg (216 lb) |
| Outputs | 4 - 20mA; 2 In/4 Out digital I/O |
| Platform Construction | Stainless Steel |
| Power | Rechargeable Battery (Not Included); AC Power (Included) |
| Protection Rating | IP68 |
| Setup | Yes |
| Tare Range | To capacity by subtraction |
| Test Weight | 2500lb, OIML M1 or ASTM CL F |
| Units of Measurement | Metric Tons; Kilogram; Pound; Tonne; Custom |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing |
| Key Features | GLPGMP; Indicator Platform Separated; Battery; LFT; Printer |
| Main Purpose | Filling; Percent Weighing; Check Weighing; Data Communication; Counting |
| Market Worlds | Industrial |
| Product will be used | On the Floor; Work in Industrial; In Wet; Outdoor |
| Typical Areas | logistics and general high capacity weighing where the environment may be wet; In shipping |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8423820010 |
