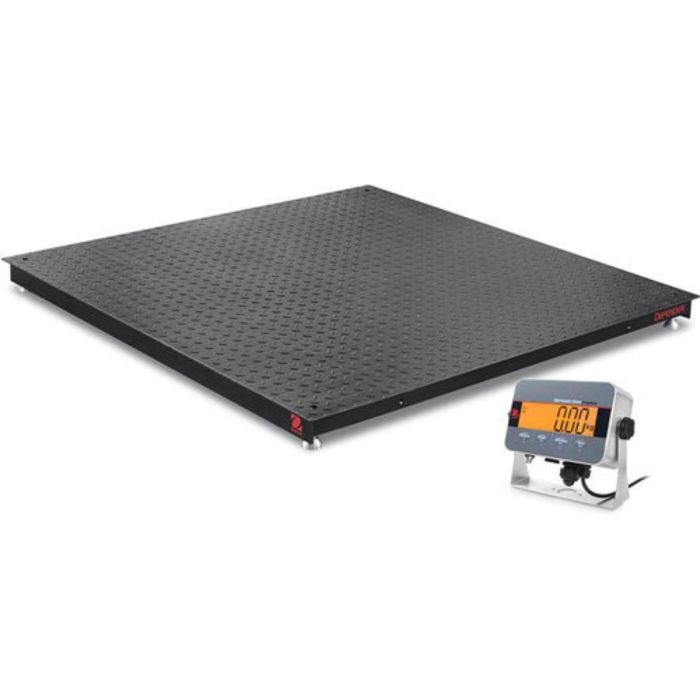

Floor Scale i-DF33XW2500B1L
was $2,560.95 Special Price $1,896.12
Floor Scales for Basic Industrial Applications (1 per EA)
Manufacturer: Ohaus Corporation
SKU
30837692-EA
Floor Scale i-DF33XW2500B1L is available to buy in increments of 1
Product Details
- Painted carbon steel treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
- Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500lb to 5,000lb with NTEP certified 5,000e performance, allowing greater flexibility for your weighing needs.
- Results are clearly shown on the large, bright backlit LCD display. In Checkweighing mode, display changes color (yellow/green/red) to alert users when within the target weight range.
Product Specifications
| Maximum Capacity | 1,250 kg (2,500 lb) |
| Readability | 0.2 kg (0.5 lb) |
| Readability (Certified) | 0.5 kg (0.5 lb) |
| Platform Size (Length) | 1,219 mm (4 ft) |
| Platform Size (Width) | 1,219 mm (4 ft) |
| Dimensions (Length) | 1,219 mm (4 ft) |
| Dimensions (Width) | 1,219 mm (4 ft) |
| Dimensions (Height) | 90 mm (3.5 in) |
| Battery Life | 30 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Display | 7 Segment LCD with multicolor backlight |
| Legal for Trade | NTEP Certified |
| Net Weight | 122 kg (269 lb) |
| Outputs | Not Applicable |
| Platform Construction | Painted Steel Diamond Plate |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Protection Rating | Not Applicable |
| Setup | Yes |
| Tare Range | To capacity by subtraction |
| Test Weight | 2500lb, OIML M1 or ASTM CL F |
| Units of Measurement | Metric Tons; Kilogram; Pound |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing |
| Key Features | Indicator Platform Separated; Battery; LFT; Printer |
| Main Purpose | Check Weighing; Data Communication; Counting |
| Market Worlds | Industrial |
| Product will be used | On the Floor; Work in Industrial; Outdoor |
| Typical Areas | In shipping; logistics and general high capacity weighing |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8423820010 |
| Hazardous material | Yes |
Manufacturer Part Number/SKU: 30837692-EA
Tags: Ohaus Corporation
