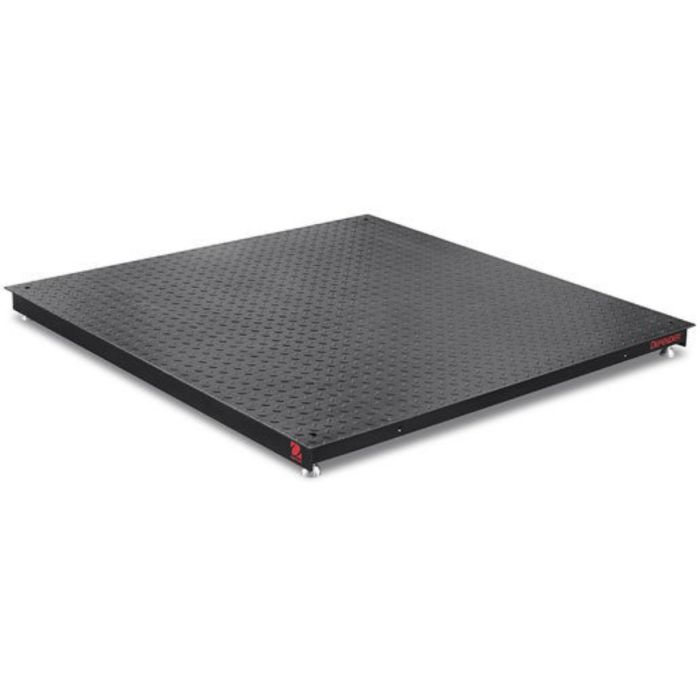

Floor platform i-DF2500B1L
was $1,979.95 Special Price $1,465.96
Platforms for Basic Industrial Applications (1 per EA)
Manufacturer: Ohaus Corporation
SKU
30716493-EA
Floor platform i-DF2500B1L is available to buy in increments of 1
Product Details
- Painted carbon steel, treaded decks with four alloy steel load cells, fixed top plate (5 mm/0.196 in. thick) with structural bracing for stiff construction.
- Platforms available in sizes of 3x3 ft, 4x4 ft, and 5x5 ft and capacities from 2,500 lb. to 5,000 lb. with NTEP-certified 5,000e performance, allowing greater flexibility for your weighing needs.
- Platforms are equipped with a 20ft EasyConnect™ cable that allows instant configuration with Defender indicators for quicker installation.
Product Specifications
| Maximum Capacity | 1,250 kg (2,500 lb) |
| Readability | 0.2 kg (0.5 lb) |
| Readability (Certified) | 0.5 kg (0.5 lb) |
| Platform Size (Width) | 1,219 mm (4 ft) |
| Platform Size (Length) | 1,219 mm (4 ft) |
| Protection Rating | IP65 |
| Legal for Trade | NTEP Certified |
| Dimensions (Length) | 1,219 mm (4 ft) |
| Dimensions (Width) | 1,219 mm (4 ft) |
| Dimensions (Height) | 90 mm (3.5 in) |
| Net Weight | 120 kg (265 lb) |
| Platform Construction | Painted Steel Diamond Plate |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing |
| Typical Areas | In shipping; logistics and general high capacity weighing |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8423820010 |
Manufacturer Part Number/SKU: 30716493-EA
Tags: Ohaus Corporation
