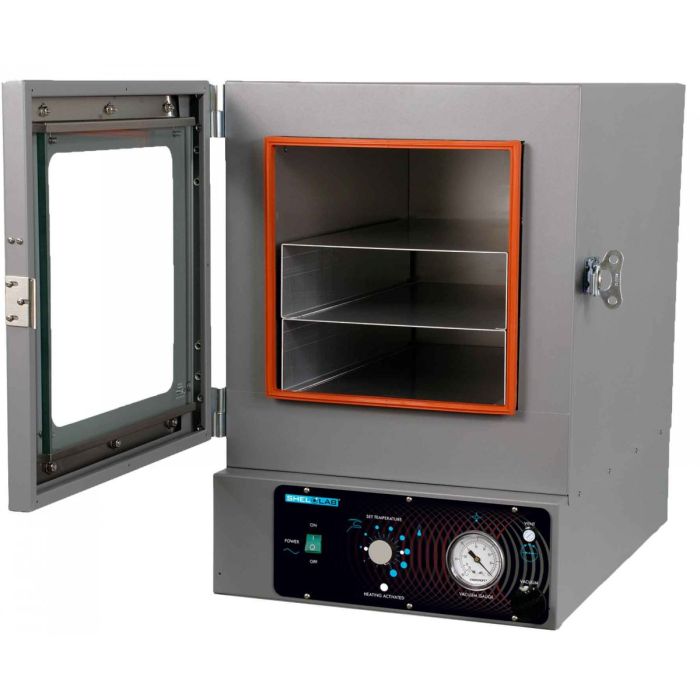

ECONOMY VACUUM OVEN, 0.6 CU FT, 115V
$2,727.00
Heat-up (min):90 min to 150C Shelving:2 Supplied Temperature Uniformity:+/-3.0 at 60°C, +/-9.0 at 120°C, +/-13.0 at 200°C Temperature Range:Ambient +/- 15°C to 210°C Exterior Dimensions WxDxH in. (cm):15.5 x 19 x 22.5 (39.4 x 48.3 x 57.2) Interior Dimensions WxDxH in. (cm):9 x 12 x 9 (22.8 x 30.4 x 22.8) Capacity:0.6 Cu.Ft. (17 L) Maximum Energy Consumption (W):600/575 All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ± 3)°C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time. (1 per EA)
Manufacturer: Sheldon Manufacturing
SKU
SVAC1E-EA
ECONOMY VACUUM OVEN, 0.6 CU FT, 115V is available to buy in increments of 1
Product Details
Download Details and SpecificationsSHEL LAB vacuum ovens provide exceptional capabilities for fast and gentle drying of heat-sensitive materials. They prevent residue accumulation on products and allow safe drying of materials at lower temperatures than typically required when using convection ovens.
These units feature a radiant heating system that optimizes chamber space and provides excellent heat transfer and temperature uniformity. All SHEL LAB vacuum ovens are built with stainless steel chambers that are easy to clean and have exceptional durability.
The doors on these units have positive latch handles with spring-loaded glass to facilitate a good vacuum seal without hinge binds that shorten the gasket life. The tempered glass viewing window allows for safe, continuous monitoring of samples. A selection of gaskets (for specific applications) and a small benchtop footprint increase the versatility of these ovens.
The SHEL LAB economy series of vacuum ovens are outstanding in any application.
Features include:
- Analog Temperature Control
- Stainless-Steel Interior
- Built-in Overtemperature Protection
- 24 Month Limited Warranty
MODEL
SVAC1E
PART ID
SVAC1E
EXTERIOR DIMENSIONS (W × D × H)
15.5 × 19 × 22.5
(394 mm × 483 mm × 572 mm)
INTERIOR DIMENSIONS (W × D × H)
9 × 12 × 9
(228 mm × 304 mm × 228 mm)
VOLUME
0.56 cu.ft. (15.9 L)
SHELF DIMENSIONS (W × D)
8.5 × 11.0 (215 mm × 279 mm)
UNIT WEIGHT
59.4 lbs (27 kg)
INTERIOR METAL
300 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +15C - 210C
TEMPERATURE UNIFORMITY - MIDRANGE
9.0 °C
TEMPERATURE STABILITY - MIDRANGE
0.5 °C
CONTROLLER TYPE
Analog
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 5.0 Amps
Manufacturer Part Number/SKU: SVAC1E-EA
