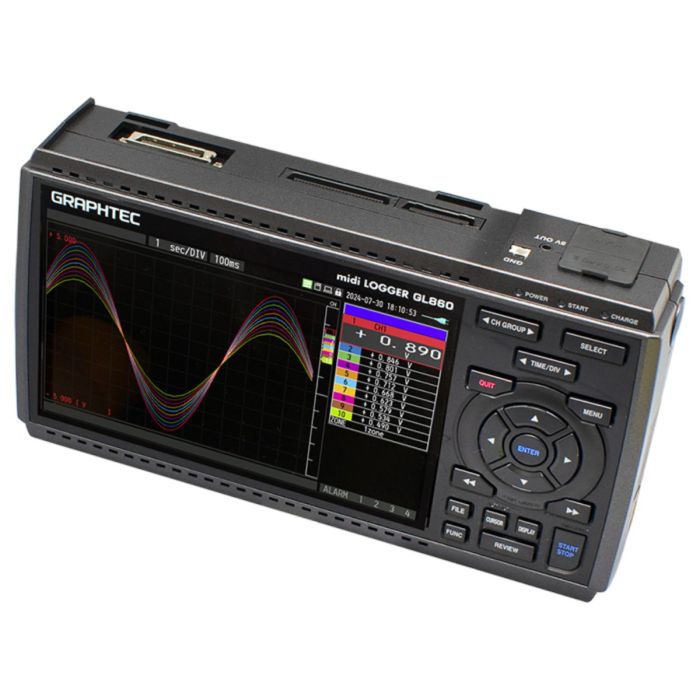

DATA LOGGER WITH 7in COLOR DISPLAY, EXPANDABLE TO 20 CHANNELS TO MAXIMUM 200 CHANNELS
was $3,800.00 Special Price $3,580.77
4 types of input terminals lineup including 30CH for the first time! (1 per EA )
Manufacturer: Yamato Scientific America
SKU
GL860-EA
DATA LOGGER WITH 7in COLOR DISPLAY, EXPANDABLE TO 20 CHANNELS TO MAXIMUM 200 CHANNELS is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- 4 types of input terminals lineup including 30CH
- Expandable from 20 channels to max. 200 channels, enabling measurement of various phenomena.
- Compatible with remote control service G-REMOTE.
- 6 new features: Faster sampling interval, Memory loop functions, CH copy function, Alarm history, Inter-CH operation, Modbus communication
- Wireless measurement from your PC is available with the optional wireless LAN unit
- 7” Color LCD Display
- 8GB internal memory, SDHC to 32GB
- 20mV to 100 Vdc & 1-5 Vdc full scale ranges
- Thermocouples: K, J, E, T, R, S, B, N, C, RTD
- 4 Pulse or Logic inputs, 4 Alarm Outputs
- 10ms to 1H sample intervals & ext. sample
- Independent start / stop triggers & ext. trigger
- Record to GBD or CSV file format
- USB 2.0, Ethernet & optional Wi-Fi capability
- GL28-APS / GL-Connection SW GUI / G-Remote capable
- Independent input type, alarm, trigger and EU scaling per channel 1
| Model | GL860 |
|---|---|
| Number of analog inputs | Maximum 200ch available for 1 terminal(20ch/30ch) or extension unit |
| External Input (*1) | Number of channels: Trigger of Sampling (1 channel), or External Sample Inputs 1ch Logic / Pulse (4 channels) |
| Pulse input: Revolutions mode, Counts mode, Inst. mode Maximum input frequency: 50kHz Maximum number of count: 50kC/sampling | |
| External Output (*1) | Alarm output: 4 ch |
| Sampling interval | 5ms-1h (5ms-50ms: voltage only, limited number of CH), external signal |
| Scaling function | 4 points can be set for each channel The temperature range scaling function is available. |
| A/D converter | Δ∑ type, 16Bit (effective resolution: 1/40,000 of ± range) |
| PC I/F | Ethernet (10BASE-T / 100BASE-TX) USB2.0 (Hi-SPEED) ,Wireless LAN (Option) |
| Storage medium (*2) | Storage: Built-in memory : approx. 8GB, SD card slot: 1 |
| Data format : GBD / CSV | |
| Recording mode | Default, Ring, Relay |
| Other functions | Calculation function, Trigger, Alarm function, Data backup function (*3) |
| Display | 7-inch TFT color LCD (WVGA: 800 x 480 dots) |
| Operating environment (including terminals) | 0 - 45º, 5 - 85% RH |
| (0 to 40°C when operated in batteries / 15 to 35°C when a battery is charging) | |
| Power supply | AC adapter: AC100-240V / 50-60Hz |
| DC input: DC8.5-24V(Option: B-514 is required) | |
| Battery pack: DC7.2V(2875 ??Ah)2 packs can be mounted (Optional item) | |
| Power consumption | 38VA or lower (when using the AC adapter, LCD ON, recharging battery, AC100V) |
| Dimentions [WxDxH] (approx. ) | (*Refer to terminal specifications) |
| Weight (approx.) | (*Refer to terminal specifications) |
| Vibration resistance | Equivalent to Automobile parts Type 1 Class A |
*1 : Input/Output cable for GL (option B-513) is required.
*2 : Recorded in 2GB per file, SD cards available, Supported SDHC, up to approx. 32GB memory
*3 : If the ring setting and external sampling function is ON, the backup function is not available.
*4 : Operating temperature range: -25°C to +80°C
*5 : OS that are no longer supported by the OS manufacturer are not supported by Graphtec
Manufacturer Part Number/SKU: GL860-EA
