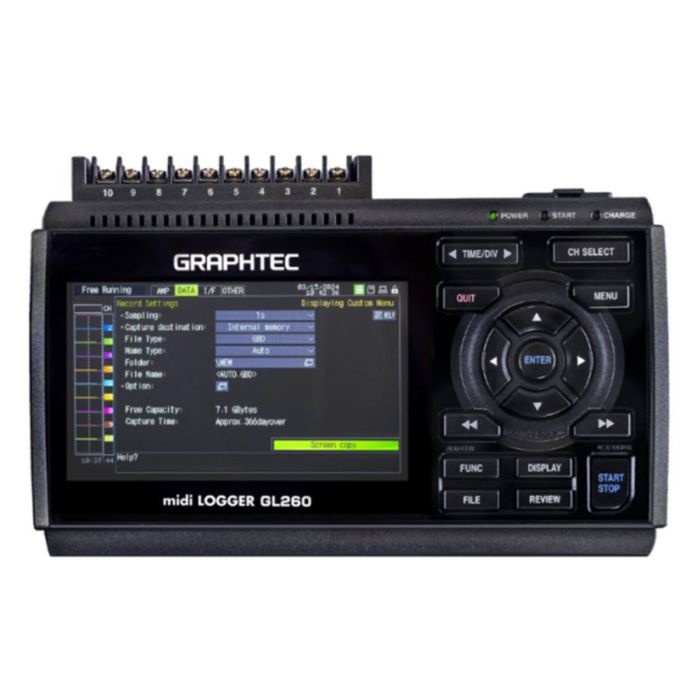

DATA LOGGER WITH 4.3in COLOR DISPLAY, 10 ANALOG CHANNELS
Manufacturer: Yamato Scientific America
Product Details
Download Details and SpecificationsFeatures
- Upgraded with three new functions: alarm history, enhanced CH to CH calculation, memory loop function
- Supports all channel isolated and multi-function input
- Optional WLAN unit enables wireless measurement with a PC and remote monitoring
- 4.3 inch wide TFT color LCD screen
- Three types of power source: AC, DC (B-514)*
- Extended memory capacity using SD cards
- Max sampling interval up to 10ms/1 channel. 100ms for all 10 channels
- Alarm output ports up to 4 channels
- Logic/Pulse signal input port up to 4 channels
- Flexible input system for voltage, temp, humidity, pulse & logic signals
- Smartphone, remote access monitoring capability
| Model | GL260 |
|---|---|
| Analog input | Number of channels: 10ch / Screw terminal (M3) |
| Type: Scans channels for sampling, All channels isolated, balanced input | |
| Measurement range: Voltage: 20mV - 100V, 1-5V F.S. Thermocouple: K, J, E, T, R, S, B, N, C and (the old W: WRe5-26) Humidity: 0 - 100% (optional item B-530 is required) | |
| Filter: Off, 2, 5, 10, 20, 40 (moving average in selected number) | |
| Max. input voltage: Between(+) / (-) terminal: 20mV - 1V range: 60V p-p / 2V - 100V range: 110V p-p Channels (-) / (+): 60 V p-p Channel / GND: 60 V p-p | |
| External Input (*1) | Number of channels: Trigger of Sampling (1 channel), or External Sample Inputs 1ch Logic / Pulse (4 channels) |
| Pulse input: Rotation count (RPM) mode, Accumulating count mode, Instant count mode Max. input frequency: 50kHz / Max. count: 50kc / sampling | |
| External Output | Alarm output: 4 channels |
| Scaling function | Analog channel, Pulse channel |
| Sampling interval | 10ms - 1h (10ms to 50ms: voltage only, limited number of CH ) External signal |
| A/D converter | Δ∑ type, 16Bit (effective resolution: 1/40,000 of ± range) |
| PC I/F | USB2.0, wireless LAN (optional item B-568 is required) |
| Storage medium (*3) | Storage: Built-in memory : approx. 8GB, SD card slot: 1 |
| Data format : GBD / CSV | |
| Capturing mode | OFF (default), Ring, Relay |
| Other functions | Calculation function, Trigger, Alarm function, Data backup function(*4) |
| Display | 4.3” TFT (WQVGA: 480 x 272 dots) |
| Operating environment (*5) | 0 - 45º, 5 - 85% RH |
| Power source | AC adaptor: AC100 - 240V / 50 - 60Hz |
| DC input: DC 8.5 - 24V (optional item B-514 is required) | |
| Battery pack: DC 7.2V (2875??Ah) (optional item B-573 is required) | |
| Power consumption | Max. 36VA (when AC100V) |
| Dimentions | 188 (W) x 117(D) x 42(H) mm |
| Weight | 500g (excluding AC adaptor and battery pack) |
| Vibration resistance | Equivalent to Automobile parts Type 1 Class A |
*1: Input/Output cable for GL (option B-513) is required.
*2: The pulse count mode counts the number of pulses per sample interval and
converted to revolutions per minute.
*3: Recorded in 2GB per file, SD cards available.
*Supported SDHC, up to approx. 32GB memory
*4: If the ring setting and external sampling function is ON, the backup function is not available.
If the backup destination is FTP , GL wireless LAN unit(B-568) is required.
*5: When operating with battery pack 0 to 40º C, charging battery 15 to 35º C
*6: OS that are no longer supported by the OS manufacturer are not supported by Graphtec.
*7: Available temperature range: -25º~+80º Special order/ 10m, 15m, 20m avilable)
*8: Specifications are subject to change without notice as this is a commercial product.
Manufacturer Part Number/SKU: GL260-EA
