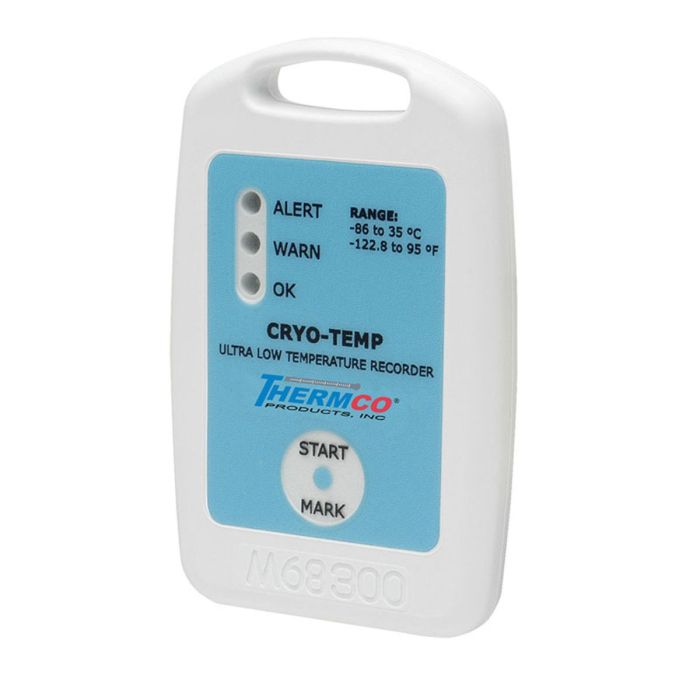

Ultra-Low Temperature Data Logger, -86 to +35C x 0.1C; does NOT include NIST Calibraton Certificate
was $370.16 Special Price $361.77
Ultra-Low Temperature Data Logger, -86 To +35C X 0.1C (1 per EA)
Manufacturer: Thermco Products Inc
SKU
ACCCRY086-EA
Ultra-Low Temperature Data Logger, -86 to +35C x 0.1C; does NOT include NIST Calibraton Certificate is available to buy in increments of 1
Product Details
Download Details and Specifications SPECIFICATIONS:
| Temperature Sensor: | NTC Thermistor |
| Temperature Range: | -86°C to +35°C recommended, may be used up to +55°C |
| Temperature Resolution: | 0.1°C |
| Calibrated Accuracy: | ±1.0°C |
| Memory: | 32,767 readings; software configurable memory wrap |
| Reading Rate: | 5 seconds to 30 minutes, selectable in software |
| Start Modes: | Software programmable immediate start, delay start up to 30 days in advance or manual start with magnetic switch |
| Temperature Alarm: | Software programmable high and low alarm limits, high and low warn limits each setpoint may be individually enabled or disabled |
| Alarm Delay: | Software programmable time delay for warn/alarm limits. Logger will not indicate out of range status until the temperature has been out of range for a for a set period of time. |
| Status Indicators: | Green- Blinks to indicate safe conditions during logging Yellow- Blinks to indicate warn limits have been exceeded Red- Blinks to indicate alarm criteria (limits/delay) have been exceeded |
| Password Protection: | An optional password may be programmed into the device to restrict access to configuration options. Data may be read out without the password. |
| Calibration: | Digital calibration through software |
| Calibration Date: | Automatically recorded within device |
| Battery Type: | 3.6V lithium battery (LTC-7PN), factory replaceable only |
| Battery Life: | 2 years typical @ 25°C, 1 min. reading intervals 1 year typical @ –80°C, 1 min. reading intervals |
| Data Format: | Date and time stamped ºC, ºF, K, ºR |
| Time Accuracy: | ±2 minutes/month max. at 20 to 30°C ±5 minutes/month max at –80°C |
| Computer Interface: | USB docking station to PC (IFC300) 38,400 baud |
| Software: | XP SP3/Vista/Windows 7 |
| Operating Environment: | -86°C to +35°C (may be used up to +55°C); 0 to 100% RH |
| Dimensions: | 3.3” x 2.1” x 0.4” (83 mm x 54 mm x 11 mm) |
| Ingress Protection/IP: | IP65 (splash resistant, not submersible) |
| Enclosure: | ABS plastic, white, polycarbonate labeling |
| Weight: | 1.4 oz (40 g) |
Manufacturer Part Number/SKU: ACCCRY086-EA
