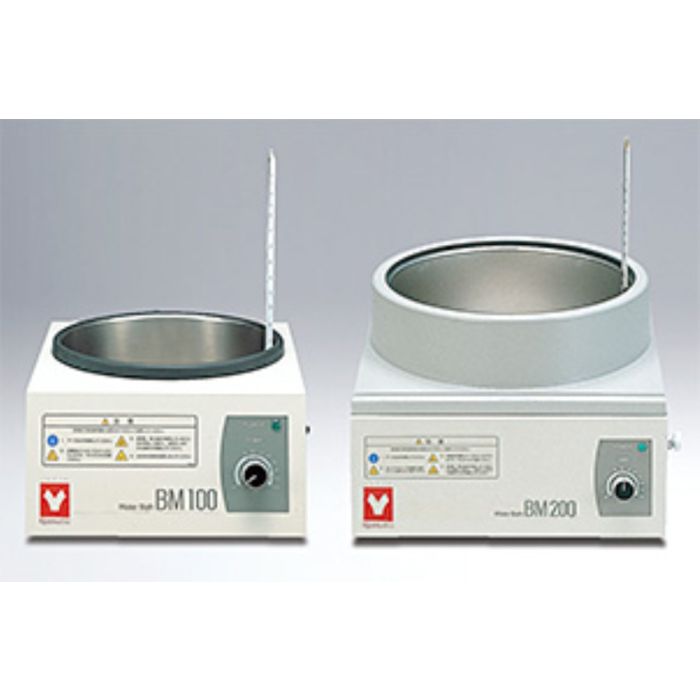

COMPACT DESIGN CONSTANT TEMP WATER BATH ANALOG 4L 115V 4.5A 50/60Hz
was $535.00 Special Price $477.49
BM100/200 Temperature is set after a volume method. High-capacity of 7.0 L (model BM200). Equipped with a drain. (1 per EA )
Manufacturer: Yamato Scientific America
SKU
BM-100-EA
COMPACT DESIGN CONSTANT TEMP WATER BATH ANALOG 4L 115V 4.5A 50/60Hz is available to buy in increments of 1
Product Details
Download Details and SpecificationsBM100/110
- Analog set up system
- Thermometer is included to verify actual temperature
- Protected water tank prevents burns caused by contact
BM302A/312A
- White LED digital display, key entry
- Flat-shaped bath with no heater or sensor inside makes for ease in cleaning
- Full range of safety functions
BM401
- Digital temperature setting by ?? keys
- Protected water tank prevents burns caused by contact
- Equipped with a drain
BM500/510
- Digital temperature setting by ?? keys
- Removable water tank for convenient cleaning and changing of water
- Heater situated outside the water tank
- Exclusive connection for bath operational setting function with RE601/801 rotary evaporator
| Model | BM100 BM110 | BM302A BM312A | BM401 | BM500 BM510 |
|---|---|---|---|---|
| Operating temp. range *¹ | Room temp. +5~95°C *¹ | Room temp. +10~90°C | Room temp. +5~95°C *¹ | Room temp. +5~90°C |
| Temp. adjustment accuracy*² | ±2°C (at 60°C) | ±1.0°C | ±1°C (at 60°C) | ±1.5°C (at agitation) |
| Temp. control system | ON/OFF control | PlD control | PlD control by microprocessor | PlD control by microprocessor |
| Temp. setting / display method | Analog setting (Glass thermometer indication) | White LED digital display, key entry, minimum digit of 1°C | Digital setting by ?? keys | Digital 7 segment LED Digital setting by ?? keys |
| Operation function | Operation at fixed point | Operation at fixed point | Operation at fixed point | Fixed temperature, quick auto stop, auto stop, auto start |
| Additional functions | -- | --- | Temp. preset function (preset / select one temp.) | Keypad lock, maintenance function (RE signal transmission and reception), calibration off-set, power failure recovery |
| Heater | SUS316 pipe heater 500W | 1000W aluminum sheathed heater | SUS316 pipe heater 1kW | 1kW (100V) / 1.44kW (120V) 1kW (200V) / 1.44kW (220V) |
| Sensor | Liquid expansion type | Pt100Ω | Pt100Ω | K thermocouple |
| Safety device | Bath protection cover | Bath protection cover | Bath protection cover | Bath protection cover (ABS heat-resistant resin) |
| Overcurrent protection (fuse: 7A), thermal fuse | Automatic overheat prevention, independent overheat prevention (fixed temp.), temperature upper limit error, Overcurrent protection fuse, Overshoot alert, Auto resume (selectable), calibration offset, 2A service outlet (for BM302A) | Self-diagnostic functions (automatic overheat prevention, sensor trouble, triac short circuit, heater disconnection, main relay failure), circuit protector, thermal fuse | Self-diagnostic functions (automatic overheat prevention, sensor trouble, triac short circuit, heater disconnecton, main relay failure), circuit protector, thermal fuse, micro switch to detect heating without water | |
| Water tank capacity | ~4L | ~5L | ~7L | ~4L |
| Water tank dimensions (Internal dimensions) | ø200 x D120 mm | ø240 x 119 mm (H) | ø250 x D150 mm | Max. ø240 x bottom ø165 x D122 mm |
| External dimensions WxDxH | 240 x 300 x 150 mm | ø262 x 240 mm (H) | 310 x 360 x 230 mm | 340 x 349 x 231 mm |
| Weight | ~3.5kg | ~4.5kg | ~7kg | ~5.5kg |
| Power source (50/60 Hz) | AC115V 4.5A paddle switch (with plug) AC220V 2.3A paddle switch (no plug) | AC100-115V, 10-12A (with plug) AC200-230V, 5-6A (no plug) | AC115V 11A (with plug) | AC100V~120V 12.5~10.5A (with plug) AC200~240V 6.5~5.5A (no plug) |
| Included accessories | Bar thermometer (10~110°C) with immersion line | Spare fuse for main power (large)(1), Spare fuse for service outlet (small) (1) for BM302A | -- | -- |
| List Price | $ 660 (promo) |
Manufacturer Part Number/SKU: BM-100-EA
Tags: Water bath, lab bath
