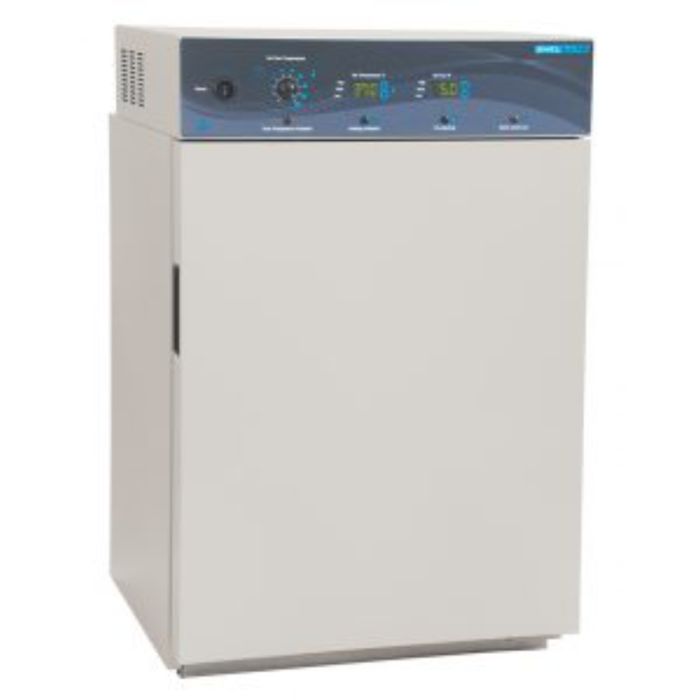

CO2 INCUBATOR, WATER JACKET, 6 CU FT, ECONOMY, IR, 115V
$7,857.00
Weight:260 lbs Overtemperature Alarm:Yes Access Port:1.75 inches Shelving:3 Supplied (16 Maximum) Relative Humidity Range:up to 95% Jacket Type:Water CO2 Recovery Rate:< 5 minutes CO2 Sensor:IR CO2 Range:0-20% Temperature Uniformity:+/-0.2°C at 37°C Temperature Range:Ambient +8°C to 60°C Exterior Dimensions WxDxH in. (cm):26.0 x 26.3 x 40.3 (66.0 x 66.7 x 102.2) Interior Dimensions WxDxH in. (cm):20.2 x 19.7 x 25.2 (51.4 x 50.1 x 64.1) Capacity:6 Cu.Ft. (171 L) Maximum Energy Consumption (W):600 Split Inner Glass Chamber Door:Optional Data Logging Capabilities:Yes All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ± 3)°C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time. (1 per EA)
Manufacturer: Sheldon Manufacturing
SKU
SCO6WE-EA
CO2 INCUBATOR, WATER JACKET, 6 CU FT, ECONOMY, IR, 115V is available to buy in increments of 1
Product Details
Download Details and SpecificationsModel SCO6WE is our basic water-jacketed CO2 incubator and is ideal for laboratories with tight budgets. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubation needs. Although they do not have a humidity display, the extremely stable temperature environment maintains constant humidity through evaporation at up to 95%.
Standard Design Features:
- Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
- Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
- Data logging capabilities
- Designed to minimize contamination; includes
- Durable stainless steel chamber for easy cleaning
- Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
- Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
- Copper shelving option
- Autoclavable shelving system
- Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor
MODEL
SCO6WE
PART ID
SCO6WE
EXTERIOR DIMENSIONS (W × D × H)
26 × 26.3 × 40.3
(661 mm × 668 mm × 1024 mm)
INTERIOR DIMENSIONS (W × D × H)
20.3 × 19.8 × 25.3
(516 mm × 503 mm × 643 mm)
VOLUME
5.9 cu.ft. (166 L)
SHELF DIMENSIONS (W × D)
19.1 × 19.1 (485 mm × 485 mm)
UNIT WEIGHT
260 lbs (117.9 kg)
INTERIOR METAL
300 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +5C - 60C
TEMPERATURE UNIFORMITY - MIDRANGE
0.2 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 5.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
Manufacturer Part Number/SKU: SCO6WE-EA
