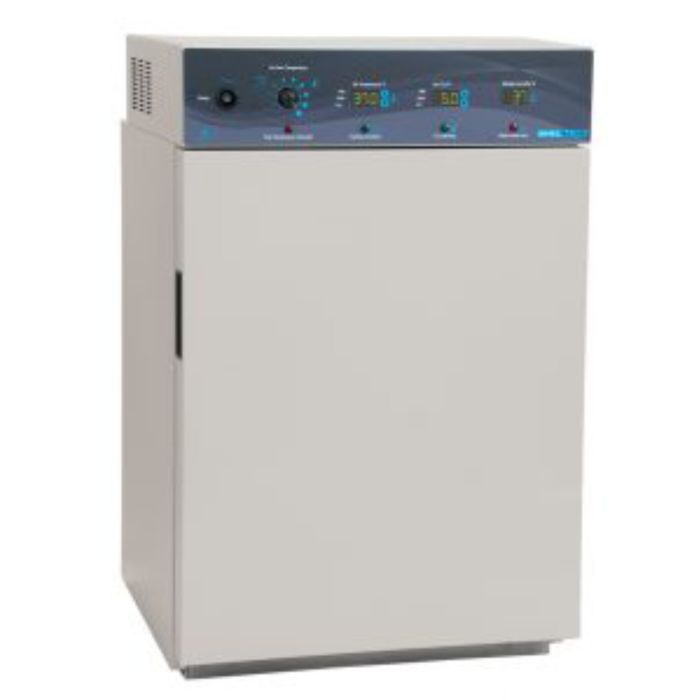

CO2 INCUBATOR, WATER JACKET, 5 CU FT, IR, HEPA, CO2 TANK SWITCH, 115V
$9,353.00
Weight:254 lbs Overtemperature Alarm:Yes Access Port:1.75 Inch Shelving:3 Supplied (16 Maximum) Relative Humidity Range:up to 95% Jacket Type:Water CO2 Recovery Rate:< 5 minutes CO2 Sensor:IR CO2 Range:0-20% Temperature Uniformity:+/-0.2°C at 37°C Temperature Range:Ambient +5°C to 60°C Exterior Dimensions WxDxH in. (cm):26.0 x 25.5 x 40.3 (66.0 x 64.8 x 102.2) Interior Dimensions WxDxH in. (cm):19.2 x 19.7 x 23 (48.9 x 50.1 x 58.4) Capacity:5 Cu.Ft. (142 L) Maximum Energy Consumption (W):600/840 Data Logging Capabilities:Yes All specifications are determined by using average values on standard equipment at an ambient temperature of (22 ± 3)°C and line voltages within +/-10% of unit type (115V/230V). Temperature specifications follow DIN 12880 methodology. We reserve the right to change specifications at any time. (1 per EA)
Manufacturer: Sheldon Manufacturing
SKU
SCO5W-EA
CO2 INCUBATOR, WATER JACKET, 5 CU FT, IR, HEPA, CO2 TANK SWITCH, 115V is available to buy in increments of 1
Product Details
Download Details and SpecificationsModel SCO5W water jacketed CO2 incubator and is an ideal unit for cell culture applications. It provides a precisely controlled, accurate, pure environment throughout the culturing process. SHEL LAB CO2 incubators are designed to provide the uniform temperatures and highly stable CO2 environments that are necessary to prevent shocks to cells. Also available in a benchtop 1.5 cu.ft./42 L size (Model SCO2W), and SCO5W units can be stacked with the use of a stacking rack (PN 9751223)
Standard Design Features:
- Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
- Unique water jacket design provides excellent temperature uniformity of +/-0.2°C at 37°C
- Humidity levels, maintained through evaporation, of up to 95%
- Temperature-compensated humidity sensor with digital display
- Data logging capabilities
- Designed to minimize contamination; includes:
- Patented copper-caged HEPA filter
- Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
- Durable stainless steel chamber with coved corners for easy cleaning
- Exclusive heated copper CO2 inlet not only promotes temperature uniformity but also prevents moisture from being introduced into the chamber
- Copper shelving option
- Autoclavable shelving system
- Industry-best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor
MODEL
SCO5W
PART ID
SCO5W
EXTERIOR DIMENSIONS (W × D × H)
26 × 25.5 × 40.3
(661 mm × 648 mm × 1024 mm)
INTERIOR DIMENSIONS (W × D × H)
19.3 × 19.8 × 23
(490 mm × 503 mm × 584 mm)
VOLUME
5.1 cu.ft. (144 L)
SHELF DIMENSIONS (W × D)
19.1 × 19.1 (485 mm × 485 mm)
UNIT WEIGHT
254 lbs (115.2 kg)
INTERIOR METAL
300 SST
EXTERIOR METAL
Painted Cold Roll Steel
OPERATING TEMPERATURE RANGE
Amb +5C - 60C
TEMPERATURE UNIFORMITY - MIDRANGE
0.2 °C
TEMPERATURE STABILITY - MIDRANGE
0.1 °C
CONTROLLER TYPE
Digital
DISPLAY RESOLUTION
0.1 °C
POWER VOLTAGE , FREQUENCY AND CURRENT
110-120 VAC, 50/60 Hz, 5.0 Amps
SAFETY CERTIFICATIONS
UL 61010-1, EN 61010-1, CSA 61010-1, CE
Manufacturer Part Number/SKU: SCO5W-EA
