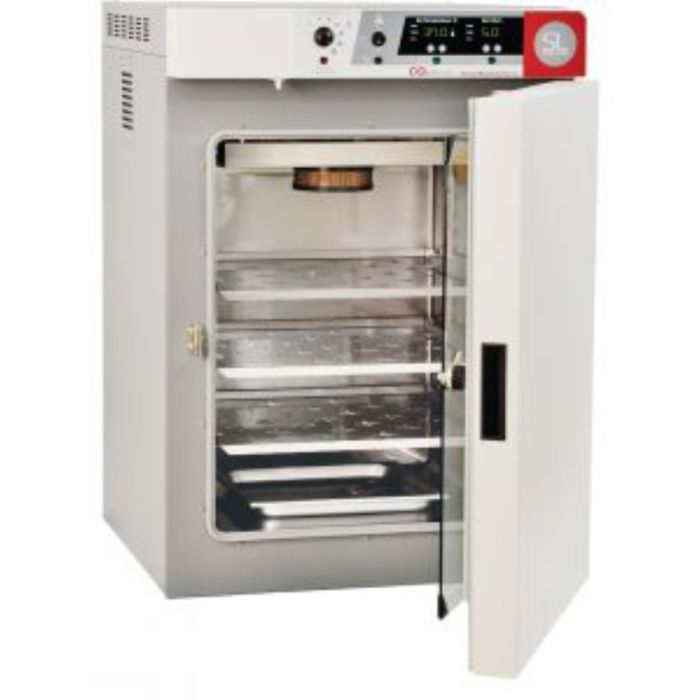

main product photo
Loading...
CO2 INCUBATOR, AIR JACKET (Direct Heat), 5 CU FT, IR, HEPA, 115V

CO2 INCUBATOR, AIR JACKET (Direct Heat), 5 CU FT, IR, HEPA, 115V

SureTherm CO2 Incubator, 180L

SureTherm CO2 Incubator, 180L

CO2 INCUBATOR, AIR JACKET (Direct Heat), 10 CU FT, DUAL Chamber (5 cuft per chamber), IR, HEPA, 115V

$15,822.00
Weight:250 lbs Overtemperature Alarm:Yes Access Port:1.45 inches Shelving:3 Supplied (8 Maximum) Relative Humidity Range:up to 95% Jacket Type:Air CO2 Recovery Rate:< 5 minutes CO2 Sensor:IR CO2 Range:0-20% Agency Approval:TUV Temperature Uniformity:+/-0.25°C at 37°C Temperature Range:Ambient +8°C to 60°C Exterior Dimensions WxDxH in. (cm):27.3 x 28.5 x 37.8 (69.3 x 72.4 x 96.0) Interior Dimensions WxDxH in. (cm):20.5 x 19.7 x 21.5 (52.1 x 50.0 x 54.6) Capacity:5 Cu.Ft. (142 L) Maximum Energy Consumption (W):720 Split Inner Glass Chamber Door:Optional Data Logging Capabilities:Yes (1 per EA)

Manufacturer: Sheldon Manufacturing

SKU
SCO10A-EA
Add to Wish List Add to Compare
CO2 INCUBATOR, AIR JACKET (Direct Heat), 10 CU FT, DUAL Chamber (5 cuft per chamber), IR, HEPA, 115V is available to buy in increments of 1

Product Details

Download Details and Specifications

Model SCO10A is a stacked version of our SCO5A incubator and is ideal for sensitive tissue and cell culture applications. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

Standard Design Features:

  • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
  • Humidity levels maintained through evaporation of up to 95%
  • Data logging capabilities

Designed to minimize contamination; includes:

  • Patented copper-caged HEPA filter
  • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
  • Durable stainless steel chamber for easy cleaning
  • Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber
  • Copper shelving option
  • Autoclavable shelving system
  • Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor

MODEL

SCO10A

PART ID

SCO10A

EXTERIOR DIMENSIONS (W × D × H)

27.5 × 28.5 × 75.6
(699 mm × 724 mm × 1921 mm)

INTERIOR DIMENSIONS (W × D × H)

20.5 × 19.8 × 21.5
(521 mm × 503 mm × 546 mm)

VOLUME

5.0 cu.ft. (142 L)

SHELF DIMENSIONS (W × D)

19.1 × 17.8 (485 mm × 251 mm)

UNIT WEIGHT

400 lbs (182 kg)

INTERIOR METAL

301 SST

EXTERIOR METAL

Painted Cold Roll Steel

OPERATING TEMPERATURE RANGE

Amb +5C - 60C

TEMPERATURE UNIFORMITY - MIDRANGE

0.25 °C

TEMPERATURE STABILITY - MIDRANGE

0.1 °C

CONTROLLER TYPE

Digital

DISPLAY RESOLUTION

0.1 °C

POWER VOLTAGE , FREQUENCY AND CURRENT

110-120 VAC, 50/60 Hz, 6.0 Amps

SAFETY CERTIFICATIONS

UL 61010-1, EN 61010-1, CSA 61010-1, CE

Description

Model SCO10A is a stacked version of our SCO5A incubator and is ideal for sensitive tissue and cell culture applications. It provides the benefits of contamination control and uncompromising temperature uniformity for even the most demanding incubations.

Standard Design Features:

  • Infrared (IR) CO2_Sensor is extremely quick to recover CO2 levels after door openings and ensures superior pH stability
  • Unique air jacket design provides excellent temperature uniformity of +/-0.25°C at 37°C
  • Humidity levels maintained through evaporation of up to 95%
  • Data logging capabilities
  • Designed to minimize contamination; includes:
    • Patented copper-caged HEPA filter
    • Heated door to ensure superior temperature uniformity and also reduce the potential for condensation to form on the inner glass door
    • Durable stainless steel chamber for easy cleaning
    • Exclusive heated copper CO2 inlet to prevent moisture from being introduced into the chamber
    • Copper shelving option
    • Autoclavable shelving system
  • Industry best warranty – 5 years parts and labor in the USA, 7 years on the IR sensor





To use your SHEL LAB CO2 Incubator USB features, you need to download the software by clicking on the image above.

SKU: SCO10A Category:



Manufacturer Part Number/SKU: SCO10A-EA

Tags: Sheldon Manufacturing
