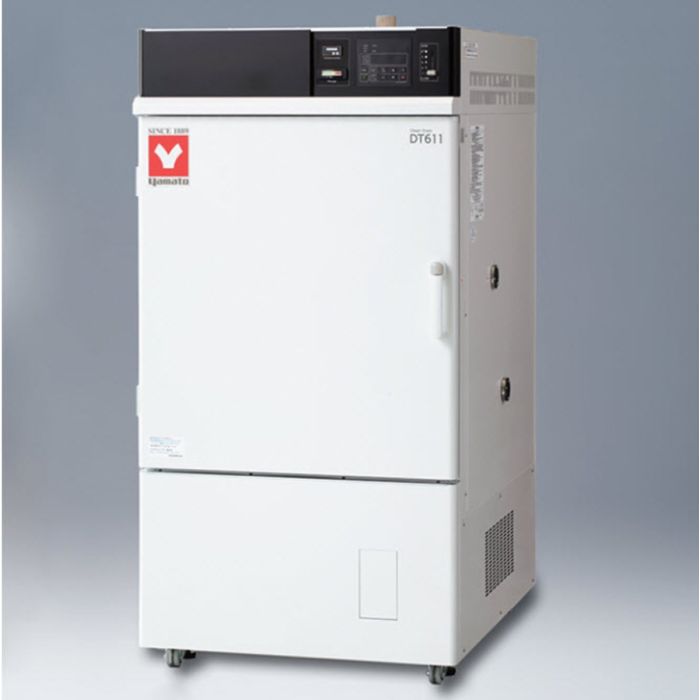

CLEAN OVEN 216L 220V 3 PHASE, UP TO 360deg.C MAX TEMP
was $29,820.00 Special Price $26,614.35
Suitable for temperature test in a dust-free environment (1 per EA )
Manufacturer: Yamato Scientific America
SKU
DT-611-EA
CLEAN OVEN 216L 220V 3 PHASE, UP TO 360deg.C MAX TEMP is available to buy in increments of 1
Product Details
Download Details and SpecificationsFeatures
- Improved visibility and operability with its V type controller
- Displays power consumption, CO2 emissions and heater manipulated variables on the control panel
- Adopts anti-fouling casters which prevents wheel contamination during transportation
- Improved visibility of HEPA filter replacement timing by three color indication
- Enhanced safety with its phase-reversal relay detecting incorrect power source at installation
- Lower equipment height compared to previous models (DE/DT411 approximately ~200 mm shorter)
- Larger cable port from φ30mm to φ33mm
- Improved optional accessories and more customization options
| MODEL | DE411 | DE611 | DT411 | DT611 |
|---|---|---|---|---|
| Circulation Method | Forced convection | |||
| Operating Temp. Range | Room temperature +30 to 260°C | Room temperature +30 to 360°C | ||
| Temp. Control Accuracy | ±0.3°C at 260°C | ±0.3°C at 360°C | ||
| Temp. Fluctuation | ±0.5°C at 260°C | ±0.5°C at 360°C | ||
| Temp. Distribution Accuracy | ±2.5°C at 260°C | ±4.0°C at 360°C | ||
| Temp. Gradient | ±10.0°C at 260°C | ±20.0°C at 360°C | ||
| Max. Temp. Reaching Time | ~70 mins. | ~80 mins. | ||
| Clean Level | Class100 (when temperature is stable) | |||
| Interior/Exterior Material | Stainless steel / Cold rolled steel plate with melamine resin baking finish | |||
| Heat Insulating Material | Glass wool | |||
| Door | Single side left swing | |||
| Heater | Stainless steel pipe heater | |||
| Fan Type | Sirocco fan, Condenser motor 400W | |||
| Differential Pressure Meter | Analog type (0 ~ 300Pa) | |||
| Cable Port/ Exhaust Port | Inner diameter: 33mm×1 (right side) / Outer diameter 61mm | |||
| Filter | Heat resistant HEPA filter (dust-collection efficiency >99.97% up to 0.3μm particle filtering) | |||
| Caster Wheels / Adjuster | Free swivel caster wheels without stopper / level adjuster (2 at front) | |||
| Temp. Control/Setting Method | PID V control / Digital setting with ?/? keys | |||
| Temp. Display System | Top screen: green 4-digit digital LED (resolution 1°C), Bottom screen: orange 5-digit digital LED (resolution 1°C) | |||
| Other Indications | LED indicates temperature patterns for heating/stabilizing/cooling | |||
| Operation Functions | Constant temperature operation, Programmed operation (Maximum 99 steps, up to 99 patterns, repeat operation function), Duration/time select operation function (auto start/auto stop/quick auto stop, program operation) | |||
| Additional Functions | Variable fan speed, Accumulated on time, operation time function (up to 65,535 hours); calibration offset; accumulated power consumption monitoring, total CO2 emission monitoring, heater output monitoring; power recovery; setting data save and restore | |||
| Sensor | K type Thermocouple dual sensor (temperature control and independent overheat prevention device sensors) | |||
| Heater Control | Triac with zero-cross control | |||
| Safety Device | Self-diagnostic functions (Detection for Temp. Sensor Failure, Triac Short Circuit, Automatic overheating prevention, Fan motor failure detection, Heater Line Disconnect, Main Relay Contact Damage), Earth leakage breaker, Key Lock Function, Independent overheating prevention device, Phase reversal relay, Door switch | |||
| Earth Leakage Breaker | 15A | 15A | 15A | 20A |
| Current leak /short circuit/surge protection, rated sensitivity 30mA | ||||
| Door Switch | Door open: fan motor and heater circuit off, Door close: fan motor and heater circuit on | |||
| Internal Dimensions WxDxH | 450×450×450 mm | 600×600×600 mm | 450×450×450 mm | 600×600×600 mm |
| External Dimensions WxDxH | 700×1025×1570 mm | 850×1175×1720 mm | 700×1025×1570 mm | 850×1175×1720 mm |
| Internal Capacity | 91L / 3.21 cu. ft. | 216L / 7.62 cu.ft. | 91L / 3.21 cu. ft. | 216L / 7.62 cu.ft. |
| Weight | ~200 kg / ~441 lbs. | ~270 kg / ~596 lbs. | ~200 kg / ~441 lbs. | ~270 kg / ~596 lbs. |
| Shelf Rest / Pitch | 12 steps / 30mm | 17 steps / 30mm | 12 steps / 30mm | 17 steps / 30mm |
| Withstand Load Of Shelf | ~30 kg / shelf | |||
| Power Supply 50/60Hz (V±10%) | 220V 3 phase 7A (no plug, round terminal) | 220V 3 phase 10A (no plug, round terminal) | 220V 3 phase 10A (no plug, round terminal) | 220V 3 phase 14A (no plug, round terminal) |
| Included Accessories | Shelf and brackets | |||
| Shelf Plate / Bracket | 2 pcs. / 4 pcs. | 3 pcs. / 6 pcs. | 2 pcs. / 4 pcs. | 3 pcs. / 6 pcs. |
* Conditions: temperature and humidity: 23°C+, 65% RH ±20%, atmospheric pressure 86kPa ~106kPa (no load), exhaust damper and intake closed
Manufacturer Part Number/SKU: DT-611-EA
Tags: Clean oven, Class 100 oven, laboratory drying oven
