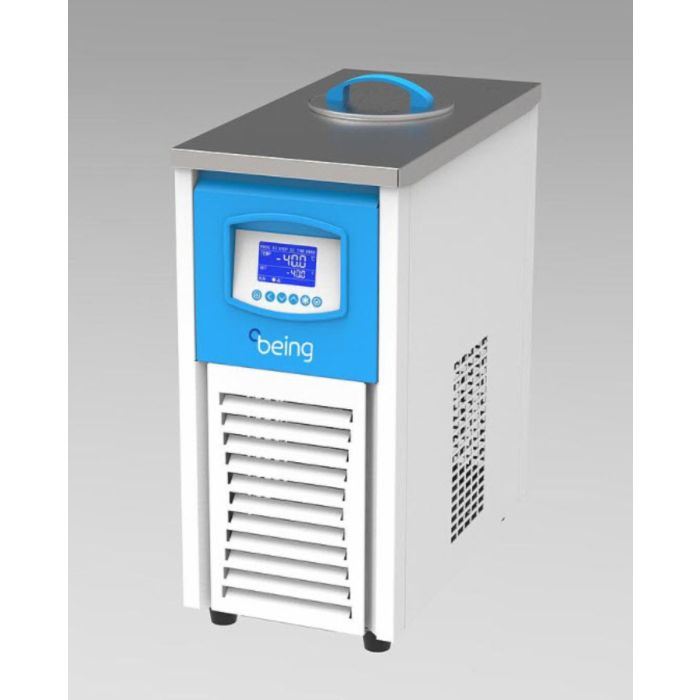

BRC-03, Chillers, 120V/60Hz, 3L

was $1,940.00 Special Price $1,750.00
Performance and Features Designed so that test results are in line with international standards DIN 12880. P.I.D temperature controller provides accurate and reliable temperature control. Automatic calibration function, be able to adapt to a variety of laboratory environment. Convenience A spread product line meets a variety of needs Wide range of options to meet a variety of experimental needs. Temperature/Capacity/Liquid Flow/Pressure/Control Mode/Internal Circulation/External Circulation. Convenient design for easy maintenance Round curved inner angle is easy to clean. Inner chamber is made from corrosion-resistant mirror stainless steel. (1 per EA )

Manufacturer: Being Instrument Inc

SKU
BRC15103U-EA
BRC-03, Chillers, 120V/60Hz, 3L is available to buy in increments of 1

Product Details

Download Details and Specifications

Storage Tank Capacity(L)

3

Lowest Temp Without Load(?)

?20?

Temperature Range(?)

?20?~20?

Best Operating Temp(?)

=35?

Relative Humidity(%RH)

=85%RH

Temperature stability

±2?

Cooling Capacity (w)

20?

1300

0?

900

?10?

380

?20?

200

Refrigerant

R404A

Temperature Sensor

pt100

Screen

LCD Screen

Safety Protection

Compressor delay start?Leakage circuit breaker,Over current/ Overvoltage Protection

Power(W)(whole chiller)

450

Power Requirement

AC 115V/60Hz

Recirculating Pump Power(W)

10

Pump Flow Rate(L/min)

10

Max. Pump Head(m)

1.5

Inlet/Outlet Pipe Diameter(mm)

f14

Inlet/Outlet Connector Diameter(mm)

f10.5

Noise

=45

Weight(Kg)

35

Liquid tank Dimension(mm)

f180mm*120mm

Exterior Dimension(mm)(including casters)

250*480*550

Adaptated Rotavaps(Capacity*Units)

2L*1

Sku Numbers

BRC15103U



Manufacturer Part Number/SKU: BRC15103U-EA
