Ecocell 222 ECO

Ecocell 222 ECO

Ecocell 55 ECO

Ecocell 55 ECO

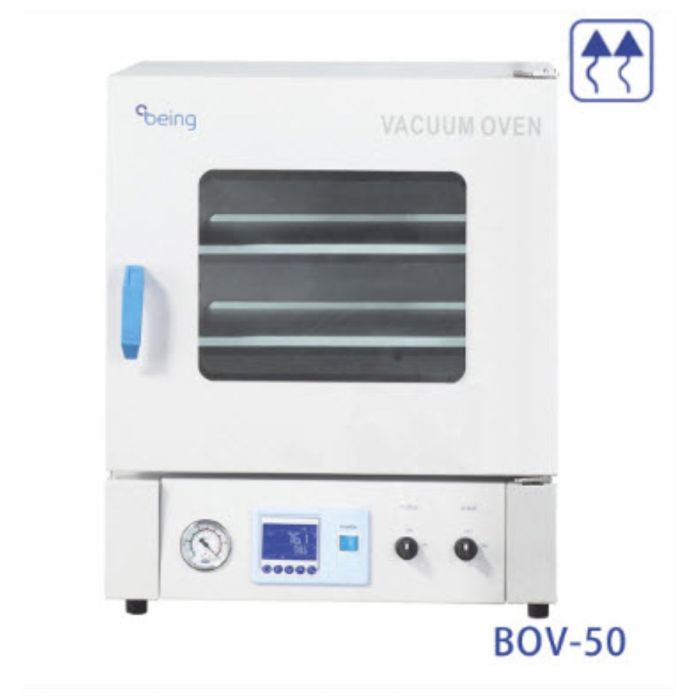

BOV-50, 51 Liters, 1.8 Cuft Vacuum Oven, 120V

was $3,800.00 Special Price $3,365.39
In a vacuum drying oven, the thermal processes occur in an airtight chamber where a desired vacuum level is set using an external vacuum pump. With vacuum ovens, entire applications can take place under vacuum or in a controlled atmosphere through the introduction of an inert gas. Vacuum ovens can help in the prevention of surface reactions (such as oxidation), decontaminating samples (removing lubricants for example) as well as for speeding up the out gassing process. When determining the vacuum oven process, bear in mind that you will need the correctly sized pump to adhere to application requirements. This requires defining the appropriate chamber size, the level of vacuum desired, and how quickly you will need to reach that desired vacuum level. (1 per EA )

Manufacturer: Being Instrument Inc

SKU
BV15050U-EA
Add to Wish List Add to Compare
BOV-50, 51 Liters, 1.8 Cuft Vacuum Oven, 120V is available to buy in increments of 1

Product Details

Download Details and Specifications

Performance and Features

  • Temperature Range:Amb+10°C - 200°C .

  • P.I.D temperature controller provides accurate and reliable temperature control.

  •  Vacuum Range: 0 - 0.1MPa. (limit vacuum 133Pa)
  •  Bundled heating provides better temperature uniformity.
  •  Inert gas interface for easy access to inert gases such as nitrogen.
  •  LED lighting.

Convenience

  •  Inner chamber is made from corrosion-resistant mirror stainless steel.
  •  Built-in toughened glass door for clear observation of internal conditions.
  •  Independent vacuum interface and vents.
  •  Equipped with solenoid valve to control vacuum degree and vacuum pump.
  •  BOV-90 come with casters.

 Safety & Peace of Mind

  •  Temperature deviation alarm.
  •  Over current protection alarm.
  •  Over heat protection component protects your equipment. Will Cut off the heater automatically if the Temperature is out of control.
  •  Independent overtemperature limit controller for added safety.

Chamber Volume (ft3 / L)

1.8 / 53

Heating Type

4-Sided Jacket Heating

Temperature Range

Ambient + 18oF to 392oF / Ambient + 10oC to 200oC

Display Resolution

0.1

Uniformity @100oC

±1 (Shelf)

Temperature Stability

±0.5

Max. Degree of Vacuum

133 Pa

Work Chamber Material

Sandblasted Stainless Steel

Shelf & Rack Material

Sandblasted Aluminum

Door Seal

Silicone

Shelves (Std. / Max.)

3 / 7

Shelf (W x D) (in / mm)

15.9 x 14.1
404 x 358

Shelf Height Adjust.

Yes

Shelf Separation Height: (in / mm)

NA

Obs. Window Material

Inner: Tempered Ballistic / Outer: Plexiglas®

Interior Dimension (W×H×D) (in / mm)

16.3 × 13.6 × 14.6
415 × 345 × 370

Exterior Dimension (W×H×D) (in / mm)

22.8 × 27.7 × 26.5
580 × 705 × 675

Shelf Loading (lb / Kg)

44.1 / 20

Net Weight (lb / Kg)

209.4 / 95

Foot/Caster

Foot

Timer (hh:mm)

00:01 – 99:59

Inert Gas / Air Inlet

Yes

Inlet Hose Barb (Ømm)

8

Vacuum Port Type

KF25

Electrical Requirement

110V, 1400W

Electrical Plug Type

NEMA 5-20

Elect. Outlet for Pump

Yes

Catalog Number

BV15050U

Shelf Part Number

P19035

Vacuum Pump Recommendation

Vacuum Pump Type

Dual Stage

Pump Fitting Type

KF25 Flange

Degree of Vacuum (w/ ballast / w/o) (Torr)

4 x 10-3
2 x 10-2

Flow rate (L/sec)

2

Evac. Time (Minutes)

1



Manufacturer Part Number/SKU: BV15050U-EA

Tags: Being Instrument Inc
