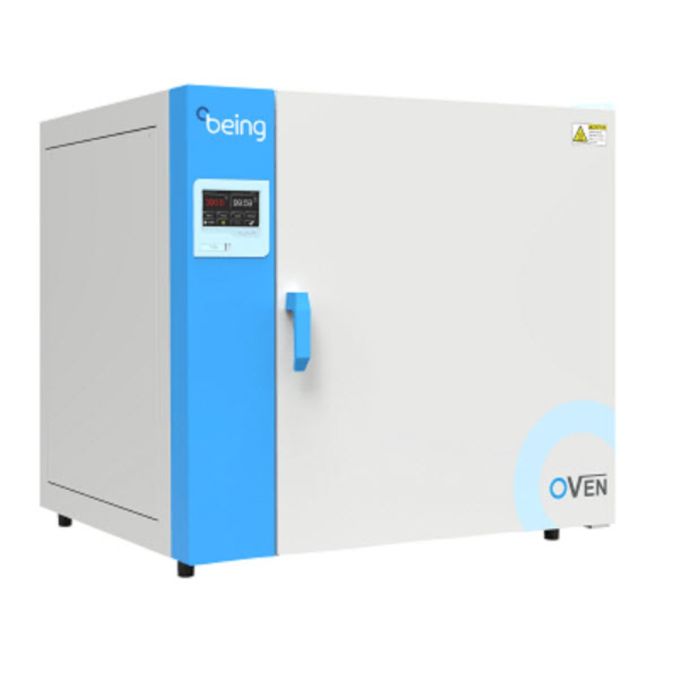

BON-200T, Forced Air Drying Oven
Manufacturer: Being Instrument Inc
Product Details
Download Details and SpecificationsPerformance and Features
- Temperature Range:Amb+10°C - 300°C .
- P.I.D temperature controller provides accurate and reliable temperature control.
- Natural convection heating allows the sample temperature to be uniform, suitable for sterilization, powder drying and high temperature storage.
- Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
- NEW color touchscreen controller.
- USB data collection port
Convenience
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Round curved inner angle is easy to clean.
- Anti-skid shelf design, easy to operate by single hand.
Safety & Peace of Mind
- Auto Start Feature after power loss/return.
- Temperature deviation alarm.
- Over temperature set point alarm.
- Over current protection.
- Independent overtemperature limit controller for added safety.
| Stackable | No |
|---|---|
| Internal Volume | 7.5 cu ft (211 liters) |
| Temperature Range | Ambient+18? to 572? |
| Uniformity at 100? | ±3.0 |
| Temperature Stability | ±0.5? |
| Display Resolution | 0.1 |
| Maximum # of Shelves | 16 |
| Test Hole | Ø5mm |
| Max. Load per Shelf | 44.1 lb / 20Kg |
| Internal Dimension (WxHxD) | 25.6×25.6×19.6 (inch) |
| External Dimension (WxHxD) | 37.0×35.8×25.9 (inch) |
| Net Weight | 227.1 lb / 103Kg |
| Timer (hh:mm) | 00:01 ~ 99:59 |
| Electrical Requirement | 240V 50/60Hz |
| Electrical Plug Type | NEMA 6-15 |
| Power Consumption | 2250W |
| Heating Rate to 100? | 40 mins |
| # of Shelves | 2 |
| Catalog Number | BO211200C |
| Warranty | 2 years |
| Certification | ETL |
| Shelf Part Number | P19248 |
Manufacturer Part Number/SKU: BO211200C-EA
