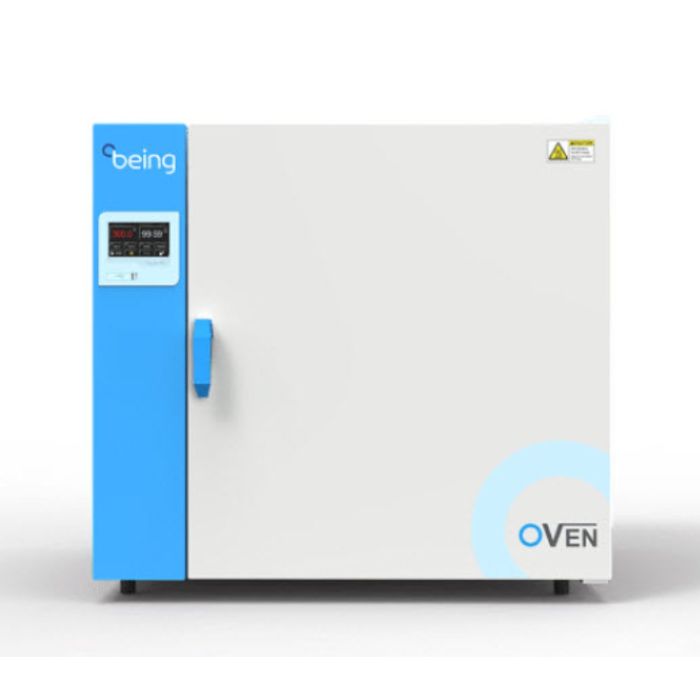

BOF-120T, Forced Air Drying Oven
Manufacturer: Being Instrument Inc
Product Details
Download Details and SpecificationsPerformance and Features
- Temperature Range:Amb+10°C - 300°C .
- P.I.D temperature controller provides accurate and reliable temperature control.
- Mechanical convection facilitates hot air circulation.
- Adjustable Exhaust Port/Vent.
- Extended Life Silicone Rubber Gasket provides excellent sealing and long service life, but is easily replaced when the time for replacement is needed.
- NEW color touchscreen controller.
- USB data collection port
Convenience
- Variety of volumes to choose. ( 30 L to 400L).
- Inner chamber is made from corrosion-resistant mirror stainless steel.
- Round curved inner angle is easy to clean.
- Anti-skid shelf design, easy to operate by single hand.
Safety
-
Auto Start Feature after power loss/return.
-
Temperature deviation alarm.
- Over temperature set point and shutdown with alarm.
- Independent over temperature limit controller for added safety.
- Over-current alarm and shutdown.
| Stackable | Yes |
|---|---|
| Internal Volume | 4.2 cu ft (121 liters) |
| Temperature Range | Ambient+18? to 572? Ambient+10? to 300? |
| Temperature Stability | ±0.5? |
| Heating Rate to 100? | 40 mins |
| Uniformity at 100? | ±3.0 |
| Display Resolution | 0.1 |
| Maximum # of Shelves | 12 |
| Test Hole | Ø5mm |
| # of Shelves | 3 |
| Max. Load per Shelf | 44.1 lb / 20Kg |
| Internal Dimension (WxHxD) | 20.5 x 20.9 x 17.3 (inch) 520×530×440 (mm) |
| External Dimension (WxHxD) | 31.9 x 29.7 x 27.0 (inch) 810×755×685 (mm) |
| Net Weight | 183.0 lb / 83Kg |
| Timer (hh:mm) | 00:01 – 99:59 |
| Electrical Requirement | 120V 60Hz |
| Electrical Plug Type | NEMA 5-20 |
| Power Consumption | 2050W |
| Catalog Number | BO212120U |
| Warranty | 2 years |
| Certification | ETL |
| Shelf Part Number | P19194 |
Manufacturer Part Number/SKU: BO212120U-EA
