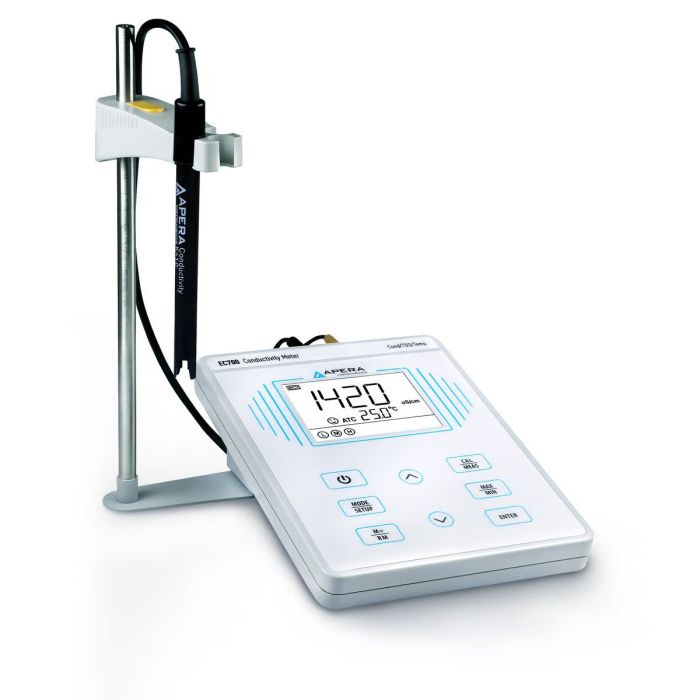

Benchtop Conductivity/TDS Meter Kit
Manufacturer: Apera Instruments
Product Details
-
Equipped with 2301T-F Conductivity Electrode – Apera’s proprietary firm platinum-black cell delivers fast, stable readings with high accuracy (±1% F.S.) across a wide range (0 to 200.00 mS/cm).
-
Simultaneous Conductivity & Temperature Measurement – Built-in 0–50°C automatic temperature compensation (ATC) ensures reliable results regardless of temperature fluctuations.
-
1–4 Point Auto. Calibration – Automatically recognizes the most common conductivity standards: 84 µS/cm, 1413 µS/cm, 12.88 mS/cm, 111.8 mS/cm, with calibration guide and self-diagnosis.
-
IP54 Splash-Proof & Dust-Proof – Durable design suitable for routine lab use and harsh bench environments.
-
Minimalist Electrode Holder – Space-saving, easy-to-install holder keeps the electrode stable during testing.
-
Simple Data Management – Store and recall up to 50 sets of measurements directly on the meter.
-
Max/Min Measuring Mode – Instantly view the highest and lowest readings for quick quality analysis.
-
Complete Starter Kit Included – Comes with three premixed conductivity calibration solutions (84 µS/cm, 1413 µS/cm, 12.88 mS/cm) for immediate use.
-
Cost-Effective Lab Performance – Provides fast, stable, and accurate conductivity/TDS measurements for basic lab testing, education, and general water-solution applications.
Parameter Settings Menu
| Symbol | Parameter Setting Content | Options | Factory Default |
|---|---|---|---|
| P1 | Select electrode cell constant (K) | 0.1 / 1.0 / 10 | 1.0 |
| P2 | Select reference temperature | 15–30 °C (adjustable) | 25 °C |
| P3 | Adjust temperature compensation coefficient | 0.00–9.99% (adjustable) | 2.00% |
| P4 | Adjust TDS factor | 0.40–1.00 (adjustable) | 0.71 |
| P5 | Select temperature unit | °C / °F | °C |
| P6 | Clear stored data | No / Yes | No |
| P7 | Restore factory default | No / Yes | No |
| Model | EC700 | |
| Conductivity | Measuring Range | Conductivity: 0~200.0 mS/cm_include (0 to 199.9) μS/cm; (200 to 1999) μS/cm; |
| Resolution | 0.1/1μS/cm_0.01/0.1 mS/cm | |
| Accuracy | ±1.0% F.S. | |
| Temperature Compensation | 0 to 50°C (32 to 212°F) Auto or Manual | |
| Electrode Constant | 0.1 / 1 / 10 cm-1 | |
| Reference Temperature | 25°C | |
| Temperature Coefficient | 0.00 to 9.99%/°C, default: 2.00%/°C | |
| Calibration | 1 to 4 points auto calibration | |
| Temperature | Measuring Range | 0 to 100°C (32 to 212°F) |
| Resolution | 0.1°C; 0.1/1?F | |
| Accuracy | ±0.5°C | |
| Others | Data Storage | 50 sets |
| Storage Content | Numbering, measurements, unit, temperature, and status of temperature compensation | |
| Power Supply | Input: 120V AC 60Hz; Output: DC9V/300mA, 2.7VA | |
| IP Rating | IP54 splash-proof and dust-proof | |
| Dimensions and Weight | (9.5*9.3*4) inches / 2.2 pounds; With case: (12*10*5) inches / 3 pounds | |
Manufacturer Part Number/SKU: EC700-EA
