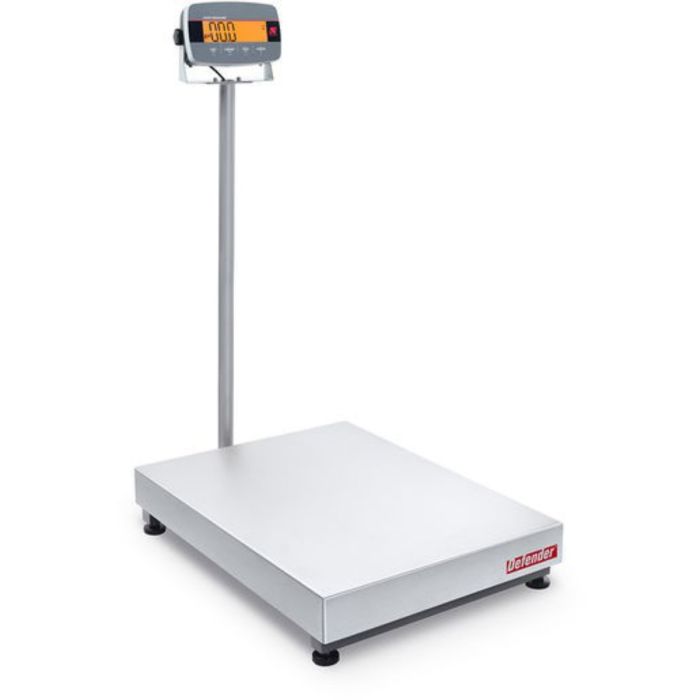

Bench Scale i-D33XW600B1V3 AM
was $1,740.95 Special Price $1,289.01
Bench Scales for Basic Industrial Applications (1 per EA)
Manufacturer: Ohaus Corporation
SKU
30685202-EA
Bench Scale i-D33XW600B1V3 AM is available to buy in increments of 1
Product Details
- Results are clearly shown using the large bright backlit LCD display. Display changes color (yellow/green/red) in Checkweighing mode to alert when within the target weight range.
- This industrial scale features a 304 stainless steel platform, powder-coated steel tubular frame, and aluminum load cell. Indicator features a stainless steel housing and mounting bracket.
- Features software for Parts Counting, Checkweighing, and Totalization. Includes RS232 with optional USB Device or Ethernet for printing or data connectivity.
Product Specifications
| Maximum Capacity | 600 kg (1,200 lb) |
| Readability | 100 g (0.2 lb) |
| Readability (Certified) | 200 g (0.5 lb) |
| Platform Size (Width) | 600 mm (23.6 in) |
| Platform Size (Length) | 800 mm (31.5 in) |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Power | AC Power (Included); Rechargeable Battery (Included) |
| Dimensions (Length) | 935 mm (36.8 in) |
| Dimensions (Width) | 600 mm (23.6 in) |
| Dimensions (Height) | 1,222 mm (48.1 in) |
| Battery Life | 100 Hours with Rechargeable Battery |
| Communication | Ethernet (Available as an Accessory); RS232 (Included); USB (Available as an Accessory) |
| Display | 7 Segment LCD with multicolor backlight |
| Net Weight | 46.7 kg (103 lb) |
| Outputs | Not Applicable |
| Platform Construction | Stainless Steel |
| Protection Rating | Not Applicable |
| Second Scale Input | Not Applicable |
| Tare Range | To capacity by subtraction |
| Test Weight | 600 kg, OIML M1 or ASTM CL F |
| Units of Measurement | Kilogram; Gram; Pound; Ounce; Pound:Ounce |
| Working Environment | 14°F – 104°F, 85%RH, non-condensing |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing |
| Key Features | Indicator Platform Separated; Battery; LFT; Printer |
| Main Purpose | Data Communication; Check Weighing; Counting |
| Market Worlds | Industrial |
| Product will be used | On a Table; Mobile Usage; On the Floor; Work in Industrial; Outdoor |
| Typical Areas | In general weighing and basic counting |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8423820050 |
Manufacturer Part Number/SKU: 30685202-EA
Tags: Ohaus Corporation
