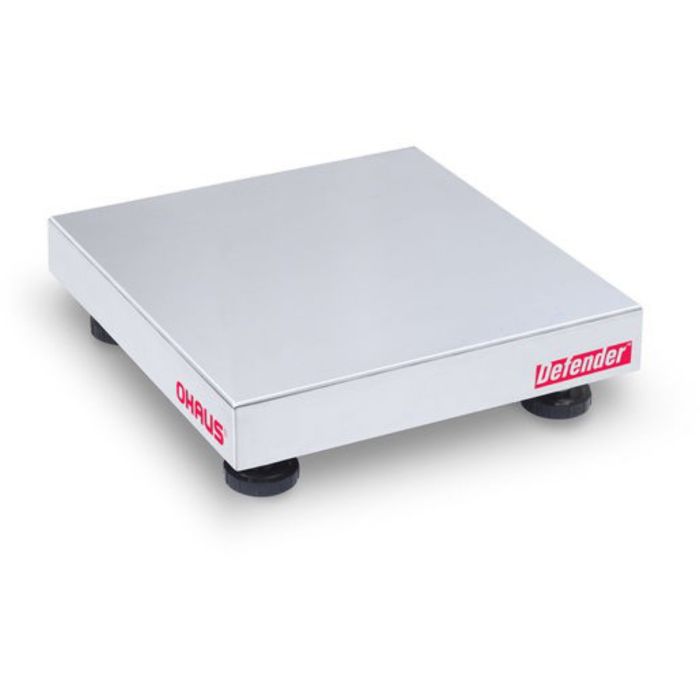

Base, D500RQV
was $1,856.95 Special Price $1,754.87
Durable Bases for the Most Demanding of Industrial Applications (1 per EA)
Manufacturer: Ohaus Corporation
SKU
30419654-EA
Base, D500RQV is available to buy in increments of 1
Product Details
- The R Series features a stainless steel platform, powder-coated steel frame and an aluminum load cell to withstand harsh industrial environments.
- The Defender 5000 bases are equipped with an EasyConnect cable, which allows instant configuration with Defender 5000 (TD52) indicators, speeding up installation.
- Defender 5000 bases are NTEP-certified and Measurement Canada approved. These bases also carry OIML and EC Type approvals, which make them ideal for legal-for-trade use.
Product Specifications
| Maximum Capacity | 500 kg (1,000 lb) |
| Readability | 20 g (0.05 lb) |
| Readability (Certified) | 100 g (0.2 lb) |
| Platform Size (Width) | 610 mm (24 in) |
| Platform Size (Length) | 610 mm (24 in) |
| Legal for Trade | NTEP Certified; Measurement Canada Approved |
| Protection Rating | IP67 |
| Dimensions (Length) | 633 mm (24.5 in) |
| Dimensions (Width) | 610 mm (24 in) |
| Dimensions (Height) | 130 mm (5.1 in) |
| Key Features | Indicator Platform Separated |
| Net Weight | 31 kg (68.3 lb) |
| Platform Construction | Stainless Steel |
| Test Weight | 500kg, OIML M1 or ASTM CL F |
| Working Environment | 14°F – 104°F, 80%RH, non-condensing |
| Working Environment | -10°C – 40°C, 80%RH, non-condensing |
Logistic Specifications
| Country of origin | CN |
| Customs tariff number | 8423820050 |
Manufacturer Part Number/SKU: 30419654-EA
Tags: Ohaus Corporation
