Bottle Top Dispenser, with Recirculation, 5.0mL to 50.0mL, 1.0mL increments

Bottle Top Dispenser, with Recirculation, 5.0mL to 50.0mL, 1.0mL increments

Autocap Dispenser

Autocap Dispenser

Autocap Dispenser

was $68,400.00 Special Price $44,887.50
The Hoefer Dispenser is a fully automated system for precise dispensing of cells, standards, and reagents. Compatible with multiple tube types, supports 6- and 8-channel decap, recap, and dispensing in one workflow, delivering efficient, safe, and contamination-free laboratory automation. Benefits: High efficiency – up to 2,000 sample tubes/hour. High consistency – dispensing volume error <5%. Flexible configuration – 6/8 channels, filling range 50 µL–2 mL. High precision – repeat positioning accuracy 0.02 mm. Enhanced Safety – Disposable sterile consumables eliminate cross-contamination. Minimal Exposure Time – Exposure time is as short as 10 seconds, reducing contamination risks. Equipped with UV sterilization lamps for module disinfection. Pportable, suitable for biosafety cabinet operation. Power Supply: 220 VAC, 300 W System Power: 200 W/AC 220V/50Hz (Voltage fluctuation range ±5%; requires stabilizer if exceeded) Grounding: Class D (Ground resistance =100O) (1 per EA )

Manufacturer: Hoefer Inc

SKU
ST-ACD02-EA
Add to Wish List Add to Compare
Autocap Dispenser is available to buy in increments of 1

Product Details

Download Details and Specifications

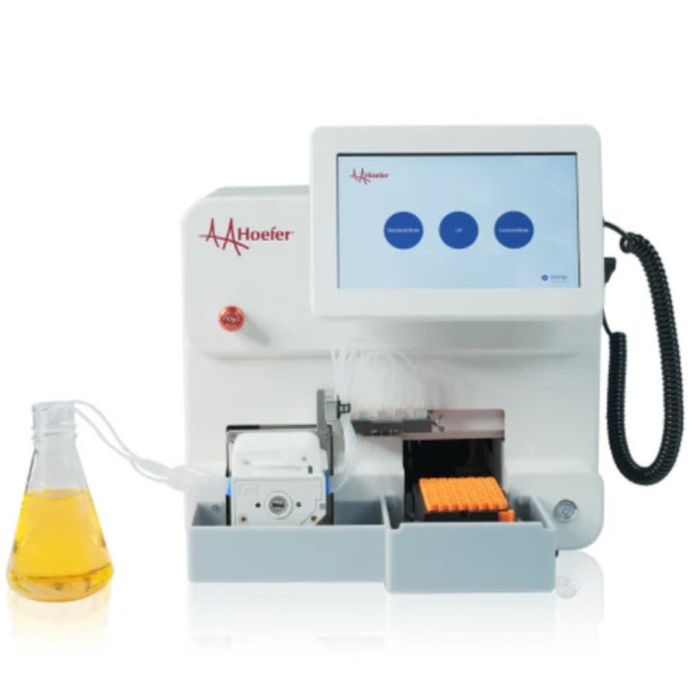

The Hoefer Autocap Dispenser is a fully automated solution designed for the efficient dispensing of cells, reference standards, and reagents. Compatible with a wide variety of sample tube brands and types, it supports 6-channel and 8-channel configurations to simultaneously decap, recap, and dispense with precision. Delivering high efficiency, reliable consistency, enhanced safety, and contamination-free operation, the Hoefer Autocap Dispenser sets a new benchmark for automated laboratory workflows.

Features

• Automated Operation – Easily handles filling of standards, bulk cells, reagents, etc.
• High efficiency – up to 2,000 sample tubes per hour.
• High consistency – dispensing volume error <5%.
• Flexible configuration – 6/8 channels, filling range 50 μL–2 mL.
• High precision – repeat positioning accuracy 0.02 mm.
• Enhanced Safety – Disposable sterile consumables eliminate cross-contamination.
• Minimal Exposure Time – Exposure time is as short as 10 seconds, reducing contamination risks.
• Equipped with UV sterilization lamps for module disinfection.
• Integrated compact cabinet – space-saving, portable, suitable for biosafety cabinet operation.

Specifications

ST-ACD02 ST-ACD03
Parameter 6-channel model 8-channel model
Filling Volume Range 100 μL–2 mL 50 μL–1 mL
Maximum Flow Rate 32 ml/min
Speed Adjustment Resolution 1 rpm
Error Precision ≤5%
Dimensions, W×L×H, mm 400×510×400
Cap Handling
Positioning Accuracy Positioning Adjustment, Positioning Tolerance: ±0.05mm
Specifications Capping/decapping for 6 tubes Capping/decapping for 8 tubes
Motion Module
Speed Max 150 mm/s
Positioning Accuracy ±0.02 mm
Operating Environment
Power Supply 220 VAC, 300 W
System Power 200 W/AC 220V/50Hz
(Voltage fluctuation range ±5%; requires stabilizer if exceeded)
Grounding Class D (Ground resistance ≤100Ω)
Temperature 10~35?
Humidity ≤90%
Oil Mist Not allowed
Condensation Not allowed



Manufacturer Part Number/SKU: ST-ACD02-EA

Tags: Hoefer Inc
