3.5 ml 48-Well Deep Well Plate, U-bottom, Round well, Sterile, 5/pk, 50/cs

3.5 ml 48-Well Deep Well Plate, U-bottom, Round well, Sterile, 5/pk, 50/cs

2.2 ml 96-Well Deep Well Plate, V-Bottom, Square well, non-sterile, 5/pk, 50/cs

2.2 ml 96-Well Deep Well Plate, V-Bottom, Square well, non-sterile, 5/pk, 50/cs

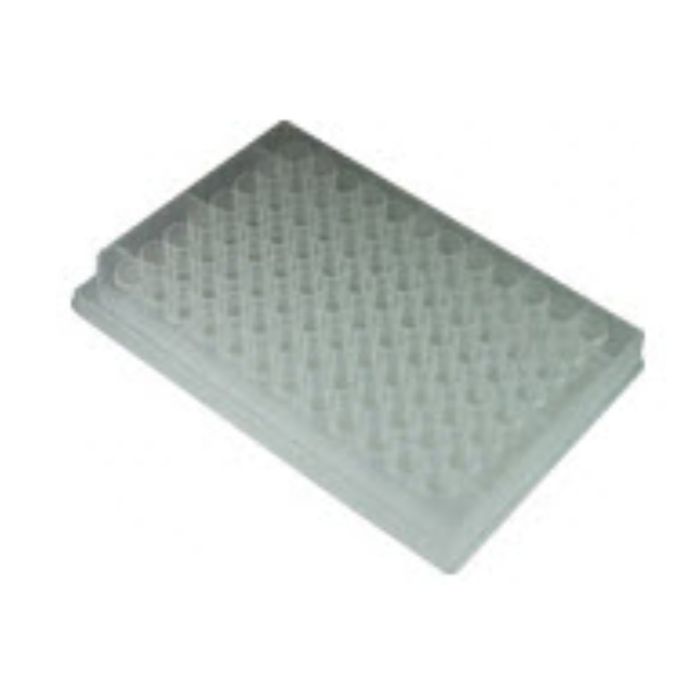

480ul 96-well plt, Nat, rd well, V-bot, Str, 10 plts/pk, 10 pks/cs

was $280.50 Special Price $183.53
450ul 96-well Plate, Clear, Round well, V-bottom, Sterile; 10 plates/pack, 10 packs/case CS 100 (100 per CS )

Manufacturer: Innovative Laboratory Products

SKU
DP33VR-9-NS-CS
Add to Wish List Add to Compare
480ul 96-well plt, Nat, rd well, V-bot, Str, 10 plts/pk, 10 pks/cs is available to buy in increments of 1

Product Details

This low height plate is ideal for assay work, magnetic beads, and maximizing sample storage.  The unique open bottom design offers more area for magnetic beads, while larger diameter wells improve sample access and mixing.  Raised rims on each well make for easy and secure sealing with adhesive films, silicone mats, or heat sealing films.  Manufactured from virgin polyproplyene and certified to be free of RNase, DNase, and Pyrogen contamination.

ILP Deep Well Plates offer:
Ultra-flat surfaces
Alphanumeric grid reference
Raised Well Design - improved heat sealing and reduced cross contamination
Storage down to -80°C
Made from Virgin Polypropylene
Automation compliant footprint (SBS/ ANSI/SLAS specification)
RNase, DNase, DNA, and Pyrogen Free Certification
Matching silicone cap mats

Recommended Mat:   DPMATR-9-PRT

Sterile version:  DP33VR-9-NS (Sterilized via Gamma Irradiation)

General Plate Specifications (DP33VR-9-N):

Foot Print:
ANSI/SBS 1-2004
Well Wall Type:
Shared Wall
Material:
Virgin Polypropylene
Color:
Natural
Temperature Range:
-80°C to 120°C
Centrifugation (Max.):
4,000 x g
Autoclavable:
Yes (121C at 15 psi/1 atm for 15 min. - do not dry cycle)
Automation Compatible:
Yes

Get a Product Data Sheet for DP33VR-9-N here.
Get a Part Drawing for DP33VR-9-N here.

  • Number of Wells
    96
  • Well Shape Top
    Round
  • Well Shape Bottom
    V - Bottom
  • Packaging
    10 Plates/Pack, 10 Packs/Case
  • Critical Dimensions
    • Plate Height
      14.4 mm
    • Top Length
      122.9 mm
    • Top Width
      81.1 mm
    • Bottom Length
      127.78 mm
    • Bottom Width
      85.47 mm
    • Well Depth
      11.3 mm
    • Well Diameter Top
      8.5 mm
    • Well Diameter Bottom
      7.91 mm
    • Well Bottom to Deck
      2.72 mm
    • Well A1 (X,Y)
      14.25 mm, 11.15 mm
    • Well to Well
      9.0 mm (on center)
  • Well Volumes
    • Overall Volume / Well
      520 ul
    • Working Volume / Well
      480 ul
    • Volume with Mat / Well
      300 ul



Manufacturer Part Number/SKU: DP33VR-9-NS-CS

Tags: Innovative Laboratory Products
