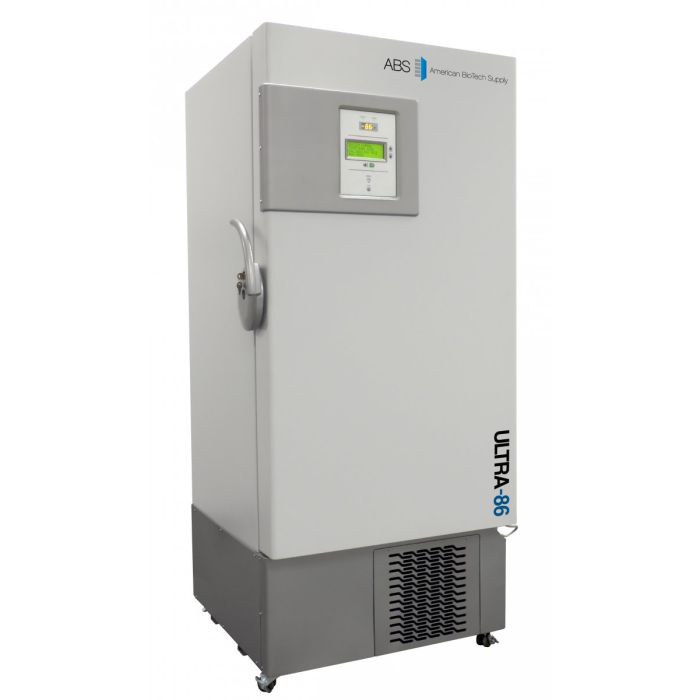

17 Cu.Ft., 230V Ultra Low Temp Freezer

Product Number: ABT-230V-1786

• Ultra Low Temperature Freezer
• 17 Cu.Ft. Capacity
• One solid swing exterior door, right hinged, not reversible
• Five insulated inner doors
• Microprocessor controller specifications
• Touch pad keys and four line display for easy programming
• Large LED temperature readout
• Audible and visual alarms with silence key for audible alarms
• Programmable high and low temperature alarm set points
• Programmable access code to limit access to set points and controller configuration
• Automatic voltage boost to compensate for low line voltages
• Normally open, normally closed alarm contacts and 4-20mA signal available to connect to central alarm system
• RS-232 serial output
• Battery backup on electronics during power outages
• Temperature range: -50°C to -86°C
• Four stainless steel shelves, adjustable on ½” centers
• Cam action handle for one hand latching of exterior door.
• Handle supplied with key lock and door switch for audible and visual alarms
• Four heavy duty swivel casters with locks
• Vacuum relief port for quick access after door closures
• CFC-free refrigerant
• Two year parts and labor warranty, plus an additional three year compressor parts warranty
• Exterior dimensions: 37.6"W x 36.3"D x 79.6"H
• Interior dimensions: 23.4"W x 23"D x 50"H
• 2" box capacity:  320 ea.
• Upright freezer rack capacity:  20 ea. UF442 racks
• 230V, 60Hz, 10 amp, HP: ½ x ½
• UL/C-UL Listed
• NEMA plug configuration:  NEMA 6-15
• Cascade refrigeration system
• Shipping weight:  700 lbs
• Owner's Manual
